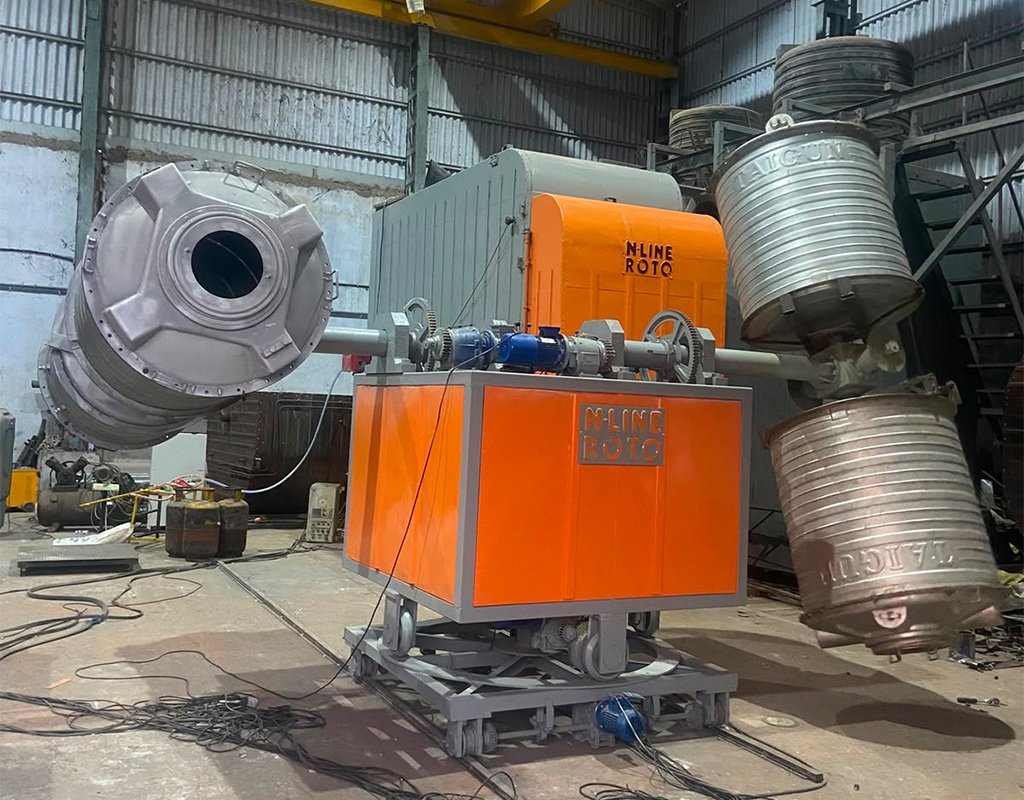

Two Arm Bi-Axial Rotational Rotomoulding Machine
A Two Arm Bi-Axial Rotational Rotomoulding Machine is a highly efficient rotational molding system designed for the production of hollow plastic products with excellent dimensional accuracy, uniform wall thickness, and superior strength. The machine features two independently rotating arms that enable simultaneous processing of molds, significantly improving productivity compared to single-arm systems.
Technical Specifications
| Model | Floor Space (Mtrs) | Straight Arm Swing (MM)* | Offset Arm Swing (MM)* | ||||
|---|---|---|---|---|---|---|---|
|
|
L |
W |
H |
Major* |
Minor |
Major* |
Minor |
|
NRP 500 X 2 |
5 |
3 |
4 |
2800 |
1000 |
– |
– |
|
NRP 1000 X 2 |
6 |
5 |
5 |
3600 |
1400 |
– |
– |
|
NRP 1000 X 4
|
7 |
5 |
7 |
4200 |
1400 |
– |
– |
|
NRP 2000 X 2
|
8 |
7 |
9 |
4400 |
1800 |
– |
– |
|
NRP 3000 X 2
|
10 |
8 |
10 |
5200 |
1900 |
– |
– |
|
NRP 5000 X 2
|
15 |
10 |
13 |
4800 |
2200 |
– |
– |
The bi-axial rotational mechanism allows molds to rotate on both the major and minor axes, ensuring even distribution of molten plastic material throughout the mold cavity. This technology is widely used for manufacturing water tanks, chemical storage tanks, road barriers, pallets, playground equipment, industrial containers, furniture products, and customized hollow plastic components.
Two-arm rotomoulding machines provide an ideal balance between production capacity, operational efficiency, and investment cost, making them suitable for medium to large-scale rotational molding operations. Modern systems incorporate PLC-based controls, energy-efficient heating systems, automated cycle management, and advanced safety features to ensure consistent product quality and reliable production performance.
Overview of Two Arm Bi-Axial Rotational Molding Technology
Two Arm Bi-Axial Rotational Molding Technology is designed to improve production efficiency by allowing multiple molding operations to occur simultaneously.
The machine consists of two rotating arms mounted on a central turret or indexing system. While one arm is undergoing the heating process inside the oven chamber, the second arm can be cooling, loading, or unloading products. This arrangement minimizes idle time and increases overall production output.
Each arm rotates on two perpendicular axes during the molding cycle, ensuring that thermoplastic powder coats the entire internal mold surface evenly. The result is a seamless hollow product with excellent structural strength, uniform thickness, and smooth surface finish.
This technology is commonly used by manufacturers seeking higher productivity without the larger investment associated with three-arm or four-arm systems.
Key Features
Two Arm Bi-Axial Rotational Rotomoulding Machines offer several features that enhance productivity and product quality.
- Two-arm production configuration
- Bi-axial rotational technology
- Independent arm operation
- Uniform wall thickness control
- Energy-efficient oven design
- PLC-based automation system
- Adjustable rotational speed settings
- Robust machine construction
- Efficient heating and cooling cycles
- Easy mold installation and replacement
- Reduced production downtime
- User-friendly operation
- Low maintenance requirements
- High production flexibility
These features enable manufacturers to achieve consistent product quality and improved operational efficiency.
NRP Machine Capacity
| Ltr Capacity | Machine Models | ||||||
|---|---|---|---|---|---|---|---|
|
|
NRP-500 X 2
|
NRP-1000 X 2
|
NRP-1000 X 4
|
NRP-2000 X 2
|
NRP-3000 X 2
|
NRP-5000 X 2
|
|
|
200 |
4 |
4 |
– |
6 |
6 |
8 |
|
|
300 |
2 |
4 |
– |
6 |
6 |
8 |
|
|
500 |
2 |
4 |
4 |
4 |
4 |
8 |
|
|
750 |
– |
2 |
4 |
4 |
4 |
4 |
|
|
1000 |
– |
2 |
4 |
4 |
4 |
4 |
|
|
1500 |
– |
– |
2 |
2 |
2 |
4 |
|
|
2000 |
– |
– |
2 |
2 |
2 |
2 |
|
Working Principle
The machine operates through synchronized heating, cooling, and loading cycles.
Material Loading
A measured quantity of thermoplastic powder is placed inside the mold and securely sealed.
Heating Cycle
The mold enters the heating chamber where it rotates simultaneously on the major and minor axes.
Cooling Cycle
Controlled air cooling or water-assisted cooling solidifies the molded product while maintaining rotational movement.
Product Removal
After cooling, the mold is opened and the finished product is removed. The mold is then prepared for the next production cycle.

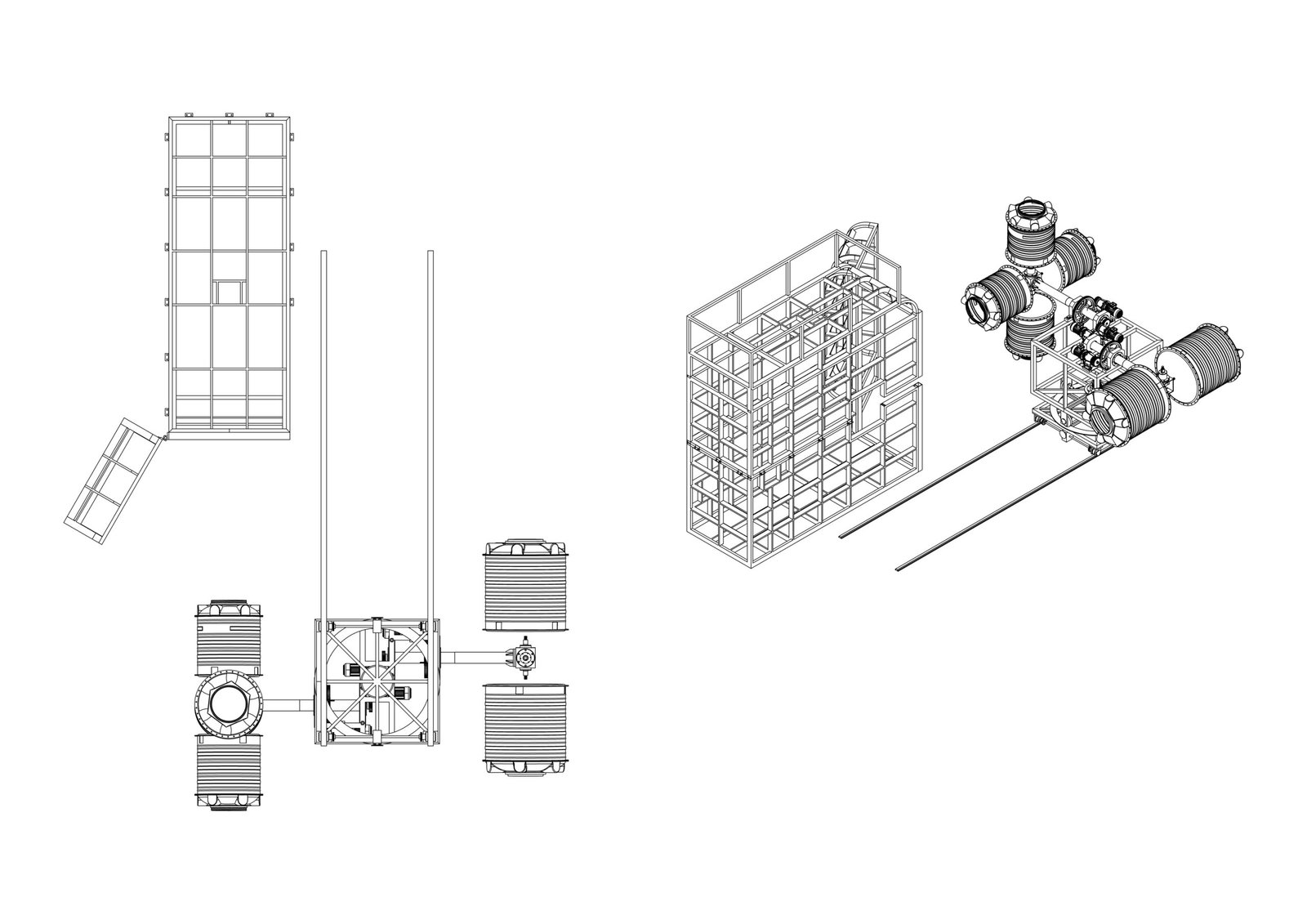

Machine Structure and Components
The Two Arm Bi-Axial Rotational Rotomoulding Machine consists of several precision-engineered components.
Central Turret Assembly
The turret supports both rotating arms and transfers them between heating and cooling stations.
Two Independent Rotating Arms
Each arm carries molds and performs bi-axial rotational movement during the molding process.
Heating Chamber
The insulated oven provides controlled and uniform heating for effective plastic melting.
Cooling Station
The cooling section uses air circulation, water spray, or combined cooling systems to solidify molded products.
Mold Mounting Assembly
Heavy-duty fixtures securely hold molds during rotation and thermal cycling.
Drive System
Motors, gearboxes, and transmission systems provide precise rotational control on both axes.
Industrial Applications
Water Storage
Agriculture
Infrastructure
Industrial
Playground
Advantages of Two Arm Bi-Axial Rotational Rotomoulding Machine
Increased Production Capacity
Two arms allow simultaneous processing, improving overall production output.
Continuous Workflow
Heating and cooling operations occur concurrently, reducing machine idle time.
Uniform Product Quality
Bi-axial rotation ensures even material distribution and consistent wall thickness.
Cost-Effective Investment
Provides higher productivity than single-arm machines while maintaining reasonable capital costs.
Energy Efficient Operation
Optimized heating systems reduce fuel consumption and operational expenses.
Flexible Manufacturing
Supports various mold sizes and product designs.
Limitations of Two Arm Bi-Axial Rotational Rotomoulding Machine
Despite its many advantages, certain limitations should be considered.
Lower Output Than Three-Arm Systems
Production capacity may be lower than larger multi-arm configurations.
Larger Space Requirement
Requires more factory floor space than single-arm machines.
Higher Initial Cost
Investment is greater than entry-level single-station machines.
Skilled Operation Required
Proper process control and maintenance require trained personnel.
Why Choose N Line Roto Pvt. Ltd.
N Line Roto Pvt. Ltd., formerly known as Neelam Roto Plast, has been serving the rotational molding industry since 1993 with advanced machinery solutions and technical expertise.
The company manufactures rotomoulding machines, pulveriser machines, extrusion systems, molds, and complete turnkey rotational molding plants.
Key Strengths
- Advanced manufacturing infrastructure
- Experienced engineering professionals
- Customized machinery solutions
- Energy-efficient machine designs
- Complete turnkey project execution
- Technical consultancy and support
- Global export capabilities
- Reliable after-sales service
Under the leadership of Mr. Dinesh Panchal, N Line Roto Pvt. Ltd. continues to provide innovative machinery solutions that help manufacturers improve productivity and product quality.
Frequently Asked Questions (FAQs)
It is a rotational molding machine equipped with two independent rotating arms that perform simultaneous production operations.
Two arms improve production efficiency by allowing heating and cooling cycles to operate simultaneously.
The mold rotates on both major and minor axes to ensure uniform material distribution.
Water tanks, chemical tanks, road barriers, playground equipment, industrial containers, and furniture products.
LLDPE, MDPE, and HDPE powders are most commonly processed.
Yes, it is ideal for medium and large-scale manufacturing facilities.
Gas-fired, diesel-fired, and electric heating systems are available.
Cooling is achieved through air circulation, water spray, or combined cooling systems.
Yes, machines can be supplied in semi-automatic or fully automatic configurations.
Yes, simultaneous arm operation significantly increases production efficiency.
Yes, rotational molding produces seamless one-piece hollow products.
The quantity of plastic powder loaded into the mold determines wall thickness.
Yes, depending on machine configuration and production requirements.
Modern insulation and burner systems help reduce energy consumption.
Water storage, agriculture, infrastructure, industrial manufacturing, furniture, and playground equipment industries.
No, rotational molding is a low-pressure manufacturing process.
Yes, machines can be customized according to specific production requirements.
Routine inspection of motors, gearboxes, burners, and control systems is recommended.
Higher productivity and improved machine utilization compared to single-arm systems.
Because of their industry expertise, advanced manufacturing capabilities, customized solutions, and dependable after-sales support.
Related Products
Four Arm Bi Axial Rotational Rotomoulding Machine
A Four Arm Bi-Axial Rotational Rotomoulding Machine is a high-capacity rotational molding system specifically designed for large-scale production of hollow plastic products.
Three Arm Bi Axial Rotational Rotomoulding Machine
A Three Arm Bi-Axial Rotational Rotomoulding Machine is a high-production rotational molding system designed for manufacturing a wide range of hollow plastic products with maximum efficiency and consistent quality.

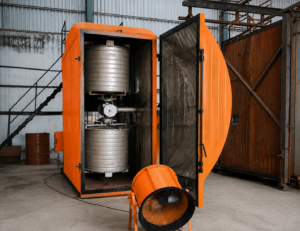

Single Arm Bi Axial Rotational Rotomoulding Machine
