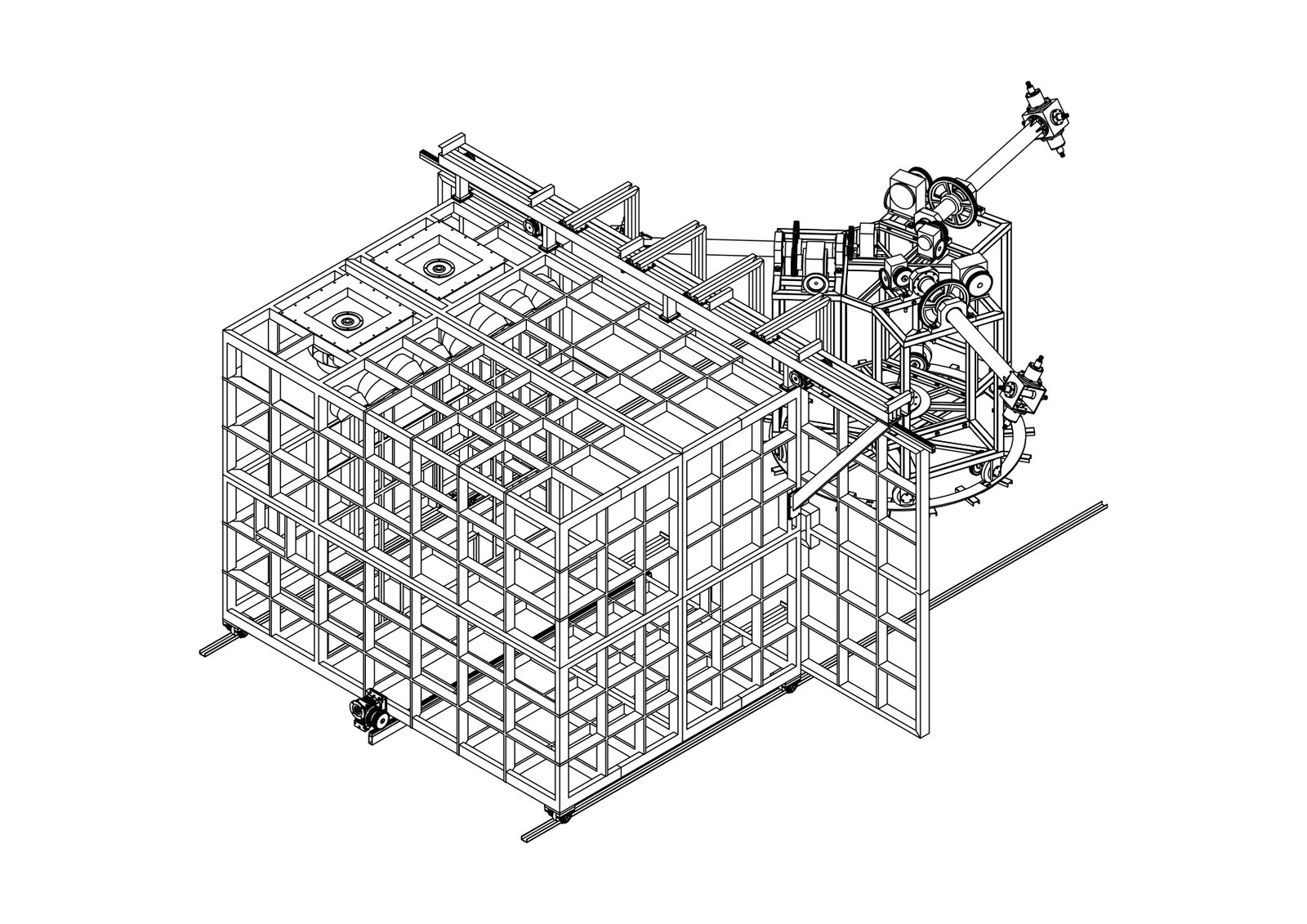

Three Arm Bi-Axial Rotational Rotomoulding Machine
A Three Arm Bi-Axial Rotational Rotomoulding Machine is a high-production rotational molding system designed for manufacturing a wide range of hollow plastic products with maximum efficiency and consistent quality. The machine features three independent rotating arms that operate simultaneously through heating, cooling, and loading/unloading stations, significantly increasing production output.
Technical Specifications
| Model | Floor Space (Mtrs) | Straight Arm Swing (MM)* | Offset Arm Swing (MM)* | ||||
|---|---|---|---|---|---|---|---|
|
|
L |
W |
H |
Major* |
Minor |
Major* |
Minor |
|
NRP 1000
|
15 |
11 |
7 |
3400 |
1600 |
– |
– |
|
NRP 2000
|
17 |
13 |
8 |
4300 |
1600 |
2900 |
1450 |
|
NRP 5000
|
20 |
14 |
7 |
3800 |
2800 |
3700 |
2300 |
|
NRP 10000 |
25 |
18 |
9 |
4600 |
3600 |
4500 |
2700 |
|
NRP 20000 |
28 |
20 |
10 |
6000 |
3600 |
5700 |
3000 |
The bi-axial rotational mechanism enables molds to rotate on both the major and minor axes, ensuring uniform distribution of molten plastic material throughout the mold cavity. This technology is widely used for producing water tanks, chemical tanks, pallets, road barriers, playground equipment, furniture, industrial containers, and various custom rotationally molded products.
Three-arm systems are particularly suitable for medium to large-scale manufacturing operations where continuous production, reduced cycle times, and improved productivity are essential. Modern machines incorporate advanced PLC controls, automated process monitoring, energy-efficient burners, and precision drive systems to deliver reliable and cost-effective production.
Overview of Three Arm Bi-Axial Rotational Molding Technology
Three Arm Bi-Axial Rotational Molding Technology is designed to maximize machine utilization and production efficiency by allowing multiple molds to be processed simultaneously.
The machine consists of three independent arms mounted on a central turret. While one arm undergoes heating, the second arm is cooling, and the third arm is being loaded or unloaded. This continuous rotational workflow minimizes downtime and improves overall productivity.
Each arm rotates on two perpendicular axes, ensuring that plastic material coats every internal surface of the mold evenly. The result is a seamless hollow product with consistent wall thickness, excellent strength, and superior surface finish.
This technology is extensively used in industries requiring large production volumes and high-quality molded products.
Key Features
Three Arm Bi-Axial Rotational Rotomoulding Machines offer numerous operational advantages.
- Three-arm continuous production system
- Bi-axial rotational technology
- Independent arm operation
- High production capacity
- Uniform wall thickness control
- Energy-efficient heating chamber
- PLC-based automation
- Adjustable rotational speeds
- Heavy-duty machine construction
- Fast mold changeover capability
- Air and water cooling options
- Reduced production downtime
- User-friendly control interface
- Low maintenance requirements
These features help manufacturers achieve higher productivity while maintaining excellent product quality.
NRP Machine Capacity
| Ltr Capacity VERTICAL | Machine Models | ||||||
|---|---|---|---|---|---|---|---|
|
|
NRP-1000
|
NRP-2000
|
NRP-5000
|
NRP-10000
|
|||
|
200 |
4 |
4 |
10 |
10 |
|||
|
300 |
4 |
4 |
10 |
10 |
|||
|
500 |
4 |
4 |
8 |
10 |
|||
|
750 |
2 |
2 |
4 |
8 |
|||
|
1000 |
2 |
2 |
4 |
8 |
|||
|
1500 |
– |
1 |
2 |
4 |
|||
|
2000 |
– |
1 |
2 |
4 |
|||
|
3000 |
– |
– |
1 |
2 |
|||
|
5000 |
– |
– |
1 |
1 |
|||
|
7000 |
– |
– |
– |
1 |
|||
|
7500 |
– |
– |
– |
1 |
|||
|
8000 |
– |
– |
– |
1 |
|||
|
10000 |
– |
– |
– |
1 |
|||
Working Principle
The machine operates through synchronized heating, cooling, and loading cycles.
Material Loading
A predetermined quantity of polyethylene powder is loaded into the mold and securely sealed.
Heating Cycle
The loaded arm enters the heating chamber where the mold rotates simultaneously on its major and minor axes.
Cooling Cycle
After the heating process, the arm automatically moves to the cooling station. Air or water-assisted cooling solidifies the molded product while maintaining rotational movement.
Unloading Process
Once cooling is completed, the arm moves to the loading/unloading station where the finished product is removed and the mold is prepared for the next cycle.
Machine Structure and Components
The Three Arm Bi-Axial Rotational Rotomoulding Machine consists of several key components designed for efficient and continuous operation.
Central Turret Assembly
The turret supports three rotating arms and transfers them between different production stations.
Three Independent Rotating Arms
Each arm carries molds independently and rotates on two axes during the molding cycle.
Heating Chamber
The insulated oven chamber provides uniform heat distribution for effective melting of plastic powder.
Cooling Station
The cooling system uses air circulation, water spray, or a combination of both to solidify molded products.
Mold Mounting Assembly
Heavy-duty mold mounting fixtures securely hold molds during rotation.
Drive Mechanism
Precision motors and gearboxes control major and minor axis rotation.
Industrial Applications
Water Storage
Agriculture
Infrastructure
Industrial
Marine
Advantages of Three Arm Bi-Axial Rotational Rotomoulding Machine
High Production Output
Three arms operate simultaneously, significantly increasing manufacturing capacity.
Continuous Production
Heating, cooling, and loading operations occur at the same time, minimizing downtime.
Uniform Product Quality
Bi-axial rotation ensures consistent wall thickness and material distribution.
Energy Efficient Operation
Optimized heating systems reduce fuel consumption and improve efficiency.
Production Flexibility
Different molds and product sizes can be processed simultaneously.
Reduced Labor Requirement
Automation features minimize manual intervention.
Limitations of Three Arm Bi-Axial Rotational Rotomoulding Machine
Despite its numerous advantages, certain limitations should be considered.
Higher Initial Investment
Three-arm machines require greater capital investment compared to single-station systems.
Larger Installation Space
The machine requires significant factory floor space.
Complex Maintenance
Additional arms and automation systems require regular maintenance and inspection.
Skilled Operators Required
Efficient operation and process optimization require trained personnel.
Why Choose N Line Roto Pvt. Ltd.
N Line Roto Pvt. Ltd., formerly known as Neelam Roto Plast, has been delivering advanced rotational molding machinery solutions since 2006.
The company specializes in the design and manufacturing of rotomoulding machines, pulveriser machines, extruder machines, molds, and complete turnkey projects for the plastics industry.
Key Strengths
- State-of-the-art manufacturing facility
- Experienced engineering team
- Customized machinery solutions
- Energy-efficient machine designs
- Complete turnkey project execution
- Technical consultancy and support
- Global export presence
- Reliable after-sales service
Under the leadership of Mr. Dinesh Panchal, N Line Roto Pvt. Ltd. continues to provide innovative and dependable machinery that helps manufacturers improve efficiency and profitability.
Frequently Asked Questions (FAQs)
It is a rotational molding machine with three independent rotating arms that simultaneously perform heating, cooling, and loading operations.
Three arms increase production efficiency by allowing continuous operation with minimal downtime.
The mold rotates on two perpendicular axes to ensure uniform material distribution.
Water tanks, chemical tanks, road barriers, playground equipment, industrial containers, and furniture products.
LLDPE, MDPE, and HDPE powders are widely used.
Yes, it is specifically designed for medium and high-volume manufacturing operations.
Gas-fired, diesel-fired, and electric heating systems can be used.
Products are cooled using air circulation, water spray, or combined cooling systems.
Yes, semi-automatic and fully automatic configurations are available.
Yes, simultaneous station operation significantly increases output.
Yes, rotational molding produces seamless hollow products.
The quantity of plastic powder loaded into the mold determines wall thickness.
Yes, depending on machine configuration and production requirements.
Modern burner systems and insulation improve energy efficiency.
Water storage, agriculture, infrastructure, marine, industrial, and furniture industries.
No, rotational molding is a low-pressure manufacturing process.
Yes, machines can be customized according to production requirements.
Routine inspection of motors, gearboxes, burners, and control systems is recommended.
Continuous production and significantly higher manufacturing capacity.
Because of their extensive industry experience, advanced manufacturing capabilities, customized solutions, and strong technical support.
