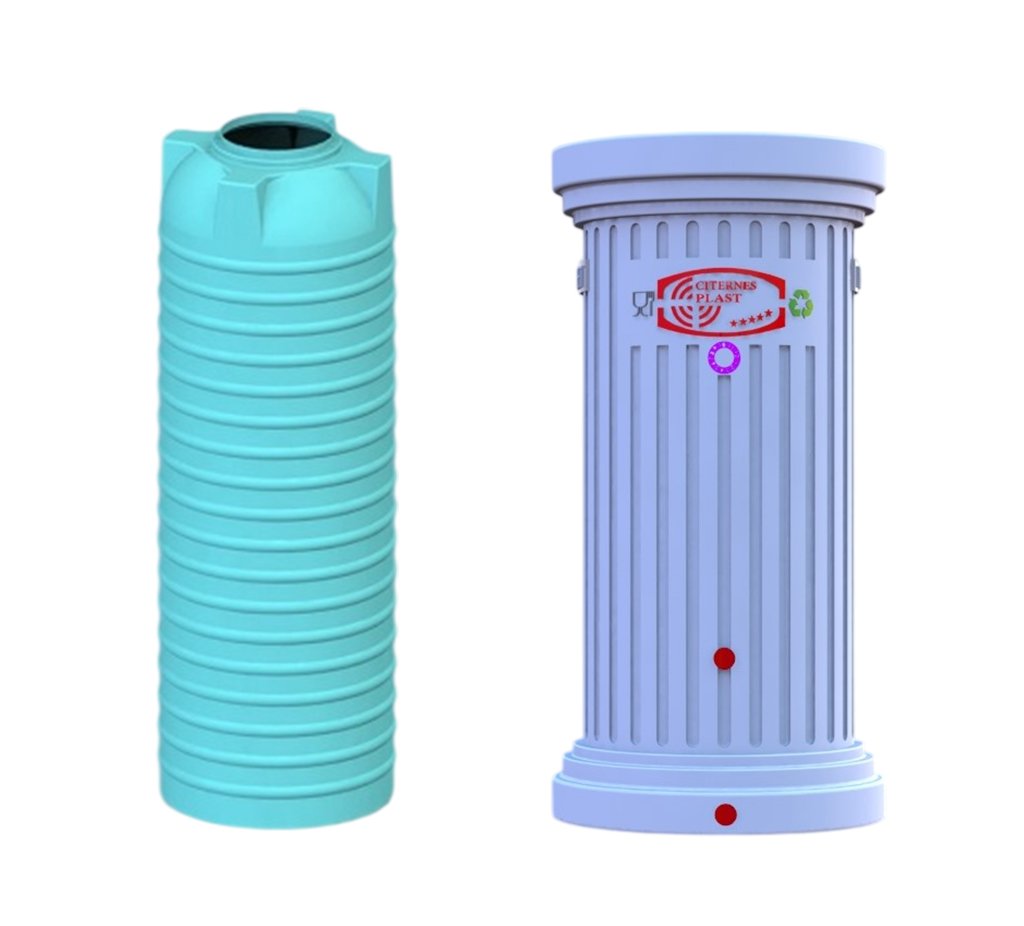

Slim Tank Mould
- Home
- /
- Slim Tank Mould
Slim tanks are specially designed water storage solutions developed for spaces where conventional tanks cannot be installed due to width or layout constraints. These tanks are widely used in urban residential buildings, commercial complexes, balconies, basements, and narrow utility areas where space optimization is critical.
Unlike standard cylindrical or vertical tanks, slim tanks are engineered with a narrow profile and elongated structure, allowing efficient utilization of limited space without compromising storage capacity. The demand for such tanks has increased significantly due to modern architectural designs and compact infrastructure.
These tanks are manufactured using rotational molding technology, which ensures seamless construction and durability. The production of such tanks requires precision tooling known as Slim Tank Moulds, designed to deliver accurate dimensions, structural strength, and consistent quality.
Understanding Slim Tank Moulds
A slim tank mould is a specially engineered metal mould used to manufacture narrow-profile plastic water tanks using the rotational molding process. These moulds define the tank’s dimensions, thickness, capacity, and functional features such as inlet/outlet positions and lid arrangements.
The mould design focuses on maintaining structural stability despite the slim profile. Reinforcement ribs and support structures are integrated into the mould to ensure the tank withstands water pressure without deformation.
Manufactured using mild steel or aluminum, these moulds provide excellent durability, efficient heat transfer, and long service life. Proper design ensures consistent product output and ease of manufacturing.
Key Features
Slim tank moulds are equipped with advanced features.
- Space-efficient design capability
- Seamless and leak-proof construction
- Uniform wall thickness
- High structural strength
- Lightweight and durable tank output
- Corrosion and weather resistance compatibility
- Customizable dimensions and capacity
- Provision for fittings and accessories
- High heat resistance
- Low maintenance requirements
These features support high-quality tank manufacturing.
Technical Specifications
| Specification | Details |
|---|---|
|
Mold Material |
Mild Steel / Aluminum |
|
Manufacturing Method |
Fabrication / CNC Machining |
|
Product Type |
Slim Water Tank |
|
Structure |
Multi-Part Mold |
|
Surface Finish |
Smooth |
Working Principle
Slim tanks are produced through the rotational molding process.
Material Loading
A specific quantity of polyethylene powder is placed inside the mould.
Heating and Rotation
The mould is heated while rotating along two perpendicular axes.
Material Distribution
Molten plastic spreads uniformly across the internal surface.
Cooling Phase
The mould is cooled to solidify the tank structure.
This process ensures seamless, durable, and uniform tanks.
Machine Mechanism
Slim tank moulds are designed with a focus on space efficiency and strength.
Mold Body
Defines the narrow and elongated tank shape.
Reinforcement Structure
Prevents deformation under load.
Inlet and Outlet Provision
Allows proper water flow.
Lid Design
Ensures secure closure.
Base Support Design
Provides stability when placed vertically.
Parting Line
Ensures easy demolding.
Industrial Applications
Residential Sector
Commercial Buildings
Hospitality Sector
Construction
Advantages of Slim Tank Mould
Slim tank moulds offer several key benefits.
Space Optimization
Ideal for narrow and compact areas.
Seamless Construction
Ensures leak-proof performance.
Lightweight Design
Easy to transport and install.
Durability
Resistant to environmental conditions.
Limitations of Slim Tank Mould
Despite advantages, certain limitations exist.
Limited Capacity
Due to slim design, storage capacity may be lower.
Structural Design Complexity
Requires careful reinforcement design.
Longer Production Cycle
Rotational molding takes more time.
Initial Investment
High-quality moulds require capital investment.
Why Choose N Line Roto Pvt. Ltd.
N Line Roto Pvt. Ltd., formerly known as Neelam Roto Plast, established in 1993, is a trusted name in rotational molding machinery and mould manufacturing.
The company specializes in delivering precision-engineered moulds supported by advanced manufacturing infrastructure and a skilled workforce. It offers complete solutions including mould design, machine supply, installation, and turnkey project execution.
With strong industry experience and leadership under Mr. Dinesh Panchal, the company provides reliable, durable, and customized rotomoulding solutions to clients across domestic and global markets.
Frequently Asked Questions (FAQs)
It is used to manufacture narrow-profile plastic water tanks.
Mild steel and aluminum are commonly used.
Polyethylene such as LLDPE is typically used.
Yes, they are seamless and leak-proof.
By controlling the material quantity.
Yes, they can be designed as per requirements.
They are designed according to machine specifications.
Yes, regular maintenance is required.
Residential and commercial sectors.
They have a long operational life.
Yes, ideal for space-saving solutions.
Yes, they are long-lasting.
Some modifications are possible.
Smooth finish for hygiene.
Yes, provisions are included.
Yes, multiple capacities are available.
Yes, they are easy to handle.
Yes, it is ideal for water storage products.
Yes, advanced moulds support this.
It produces seamless and durable tanks.
Conclusion
Slim tank moulds are essential for manufacturing space-efficient and durable water storage solutions designed for modern infrastructure needs. Through rotational molding technology, these moulds ensure seamless construction, uniform wall thickness, and reliable performance.
With advanced design and high-quality materials, these moulds enable the production of compact tanks that effectively address space constraints while maintaining strength and durability.
