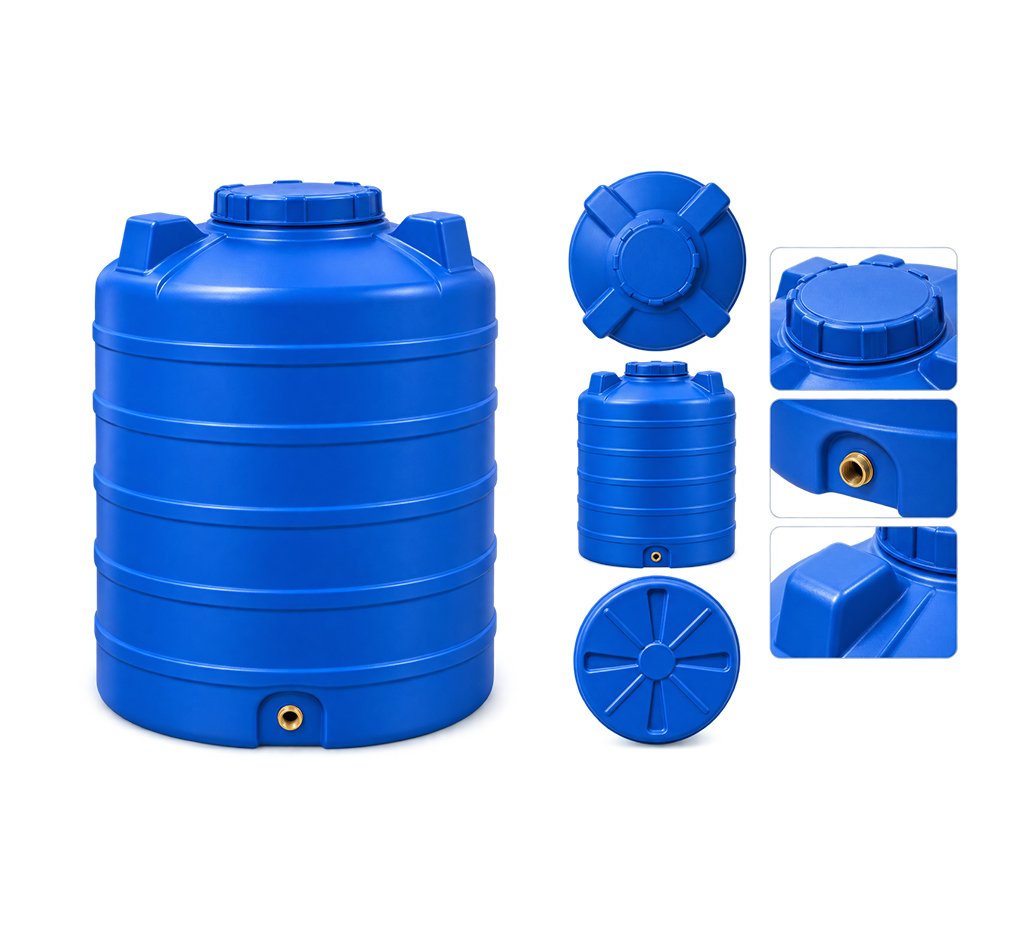

Vertical Plastic Water Tank Mould

Vertical tanks represent the industry standard for gravity-fed and overhead water storage solutions we today use in all the residential and commercial establishments. At N-Line Roto Pvt. Ltd we understand the production of high-density polyethylene (HDPE) vertical tanks requires specialized, precision-engineered vertical plastic water tank molds.

The molds we deliver have the exact physical cavity and perform exceptionally well on all critical parameters like heating, rotation, and cooling cycles to help you manufacture the highest quality of vertical water tanks.

Since the water tank mold quality directly impacts your cycle times, wall thickness distribution, and surface finish we deliver a precision-machined mold that allows manufacturers to optimize raw material usage while producing structurally sound, leak-proof vessels.

Since upright cylindrical tanks handle massive static loads in residential, industrial, and agricultural settings, we engineer the molds tooling to handle complex multi-layer configurations, including UV-stabilized outer layers and foam-core insulation, ensuring you deliver a product that dominates the market.

Vertical Plastic Water Tank Mould

The Engineering Behind Vertical Tank Molds

A vertical plastic water tank mold is a heavy-duty, fabricated metal structure engineered to shape upright cylindrical tanks via rotational molding. During the biaxial rotation process, micronized polymer powder absorbs heat and as it melts under extreme heat, the melted polymer spreads and coats the internal mold walls to form a joint-free, hollow storage tank.

To design these molds to the exact specifications, needs an in-depth understanding of fluid dynamics and thermal conductivity. At N-Line Roto, we primarily utilize high-grade mild steel or CNC-machined aluminum to fabricate these structures. Aluminum delivers rapid heat transfer, significantly shortening cycle times, while robust mild steel offers extreme durability against repeated thermal shock.

The architecture and design of the vertical mold we build addresses the geometry needed to stabilize massive volumes of stored water. Moreover, the way we build the molds provides your finished products with precision parting lines, heavy-duty clamping mechanisms, and calculated venting systems to manage internal gas expansion. These engineered features prevent flash at the seams, guarantee smooth mechanical operation, and drastically reduce operator fatigue on the shop floor.

Operational Capabilities of Our Vertical Molds

We build vertical plastic water tank molds with targeted engineering features that directly support high-volume, continuous manufacturing operations.

Optimized Thermal Conductivity

Precision engineered wall thickness across the mold ensures rapid heat transfer, lowering energy consumption and accelerating cycle times.

Precision Draft Angles

Accurately calculated tapers within the mold guarantees frictionless demolding, eliminating product warping and reducing operator strain.

Heavy-Duty Clamping Systems

Industrial-grade mechanical locks prevent polymer leakage during high-temperature and high-speed rotation, ensuring zero flash and reducing post-mold trimming.

Reinforced Base Tooling

Specifically thickened mold bases allow for maximum polymer accumulation, combating hydrostatic pressure in the finished vertical tank.

Multi-Layer Compatibility

N-Line Roto vertical plastic water tank molds are designed to accommodate complex drop sequences for 3-layer, 4-layer, and insulated foam-core tank production.

CNC-Machined Parting Lines

Exacting tolerances at the mold seams deliver a flawless external finish and preserve structural integrity of the finished product.

Technical Specifications

Specification Details
Mold Material
Mild Steel / Aluminum
Manufacturing Method
Fabrication / CNC Machining
Product Capacity
200 Liters – 10,000 Liters
Surface Finish
Smooth / Textured
Mold Structure
Multi-Part

How Our Vertical Plastic Water Tank Molds Operate?

Manufacturing a vertical water storage tank relies on biaxial rotation and precise thermal management within the mold cavity.

Polymer Charging

Start by adding the pre-calculated and measured weight of micronized polymer directly into the cold mold cavity before locking the industrial clamps.

Thermal Saturation & Biaxial Rotation

The mold is transported into the oven chamber while rotating on two perpendicular axes in the circular motion while the metal surface is heated transferring the heat to the polymer.

Polymer Melting & Distribution

As the internal temperature reaches the polymer’s melting point, the material liquefies and coats the cavity walls. Biaxial rotation ensures gravity distributes the melt evenly, focusing critical mass at the heavily engineered base section.

Controlled Cooling

Once molded, the finished product exits the oven and enters the cooling station as directed air and water mist gradually reduce the mold temperature. The plastic solidifies while retaining the exact surface finish of the internal mold wall.

This smart engineering process provides a highly controlled thermodynamic process that yields a stress-free container with exceptionally consistent wall distribution.

Vertical Plastic Water Tank Mold Architecture and Components

The mechanical design of our vertical tank molds prioritizes rapid heat transfer, structural rigidity, and operator safety.

Core Cavity & Mold Body

The primary metal shell is meant to give the plastic water tank its exact capacity, ribbing structures, and dimensional footprint and we engineer the cavity to work through extreme static loads.

Precision Parting Lines

Flange joints added to the mold divide the entire assembly into separate workable sections. We machine these seams to tight tolerances to prevent blowholes and eliminate excessive manual trimming.

Heavy-Duty Clamping

Forged bolts and quick-release toggle clamps secure the separated sections tightly enough to ensure there are no leakages, no heat escape, and that the entire cavity can withstand internal pressure expansion during the heating phase.

Teflon-Coated Venting Systems

Strategically placed breathers equalize internal cavity pressure across the entire mold structure and this allows the trapped gases to escape without polymer bridging or blowout.

Universal Mounting Brackets

Fabricated steel arms integrate flawlessly with standard straight-arm, offset, or independent-arm rotomolding machines.

Internal Surface Engineering

Cavity walls undergo extensive polishing or specialized texturing. This dictates the visual quality of the final tank and prevents polymer adhesion during ejection.

Industrial Applications

Residential

Residential Sector

Agricultural

Agriculture

construction sites

Construction

Commercial

Commercial Buildings

Water Storage

Industrial Facilities

Why Invest in High-Precision Vertical Plastic Water Tank Molds?

Investing in premium vertical mold tooling directly impacts your manufacturing output and product reputation.

Flawless Unibody Construction

Rotational molding through a high-precision cavity guarantees a single-piece vessel. This eliminates weak fusion points and completely removes the risk of joint leakage.

Faster Return on Investment

Efficient heat transfer materials reduce your per-cycle oven time, allowing you to produce more tanks per shift and lower operational overhead.

Market-Leading Geometry

Vertical configurations remain the undisputed choice for space-constrained installations. Your finished products will command high demand across residential and industrial sectors.

Multi-Layer Processing Power

Our tooling accommodates sophisticated drop sequences. You can effortlessly switch between producing basic single-layer units and premium UV-protected, insulated models.

Operational Realities of Vertical Molding

Manufacturing with vertical rotomolding tooling involves specific operational constraints that plant managers must account for.

Extended Cycle Times

The rotomolding thermodynamic cycle is slower by its operation as the heating and cooling of the metal mold cavity takes time, which means your team needs patience. However, we can solve this disruption through high-conductivity aluminum.

Significant Mold Weight

Industrial-scale vertical molds possess massive physical footprints and due to this, the handling, mounting, and demoulding requires heavy-duty overhead cranes and robust machine arms while being overly cautious around the machine.

Restricted Material Selection

The molding process for vertical water storage tank production demands specialized polymers and this means your manufacturing process is dependent on LLDPE, HDPE, or cross-linked polyethylene, limiting experimentation with non-traditional resins.

Complex Undercut Limitations

While vertical tanks are geometrically simple, adding deep undercuts or sharp internal angles can trap polymers and complicate the demoulding process.

The N-Line Roto Pvt Ltd Advantage for Water Tank Storage Manufacturers

At N-Line Roto Pvt. Ltd. we build molds and understand the complete thermodynamic process from the oven chamber to the cooling station. Embedding the latest technologies and processes to build molds, we are India’s premier state-of-the-art manufacturing facility dedicated entirely to rotomolding technology.

Our engineering team utilizes advanced CAD/CAM software and precision CNC machining to fabricate molds that survive the brutal realities of round-the-clock plant production.

We also assist plant managers with machine calibration, drop sequence timing for multi-layer tanks, and complete turnkey factory setups.

Under the strategic guidance of Mr. Dinesh Panchal, N-Line Roto Pvt Ltd organization has established a formidable presence across domestic and international markets. We routinely export high-performance machinery and precision molds to manufacturers worldwide, building long-term partnerships based on exact engineering, rapid cycle times, and uncompromising structural durability.

Frequently Asked Questions (FAQs)

How does the mold design accommodate multi-layer (3-layer, 4-layer) tank production?

Our tooling is engineered for precise thermal control and this allows your operators to configure the machine and with granular control implement highly calculated drop sequences. The mold rapidly absorbs and retains heat, ensuring the outer UV-stabilized layer cures properly before the operator introduces intermediate black layers or inner antimicrobial foam layers.

What draft angles are standard for vertical tank molds to ensure smooth demoulding?

When creating the molds for a vertical water storage tank, N-Line Roto engineers draft angles based on the tank’s height and overall diameter. Generally, a draft taper of 1 to 2 degrees is machined directly into the cavity. This slight angle is non-negotiable; it guarantees frictionless ejection.

How do you manage wall thickness at the base of the vertical tank mold?

Vertical tanks face immense hydrostatic pressure at the bottom and to ensure the tanks don’t break under pressure, we build the base of the mold with specific geometry and localized mass to ensure polymer pooling. This precise thermodynamic control draws more resin to the base during rotation, creating a reinforced bottom.

Can the mold venting system handle the expansion of foam insulation layers?

When you want to build a 4-layer insulated tank using a foaming agent is essential but it also generates internal gas. We integrate advanced Teflon-coated breathers and engineered venting tubes that manage this rapid expansion. This prevents internal pressure buildup that could otherwise cause parting line blowouts.

How do parting lines on your molds impact post-production trimming?

We machine our flange joints to handle the tolerances your vertical water tanks need and this means even a tight precision parting line prevents polymer leakage during the rotational cycle and this reduces manual labor needed for trimming.

Are your vertical tank molds compatible with independent-arm rotomolding machines?

Absolutely. We fabricate universal, heavy-duty steel mounting brackets designed to integrate with straight-arm, offset-arm, and independent-arm machinery. We can customize the bolt patterns to match your existing plant infrastructure, ensuring zero downtime during installation.
