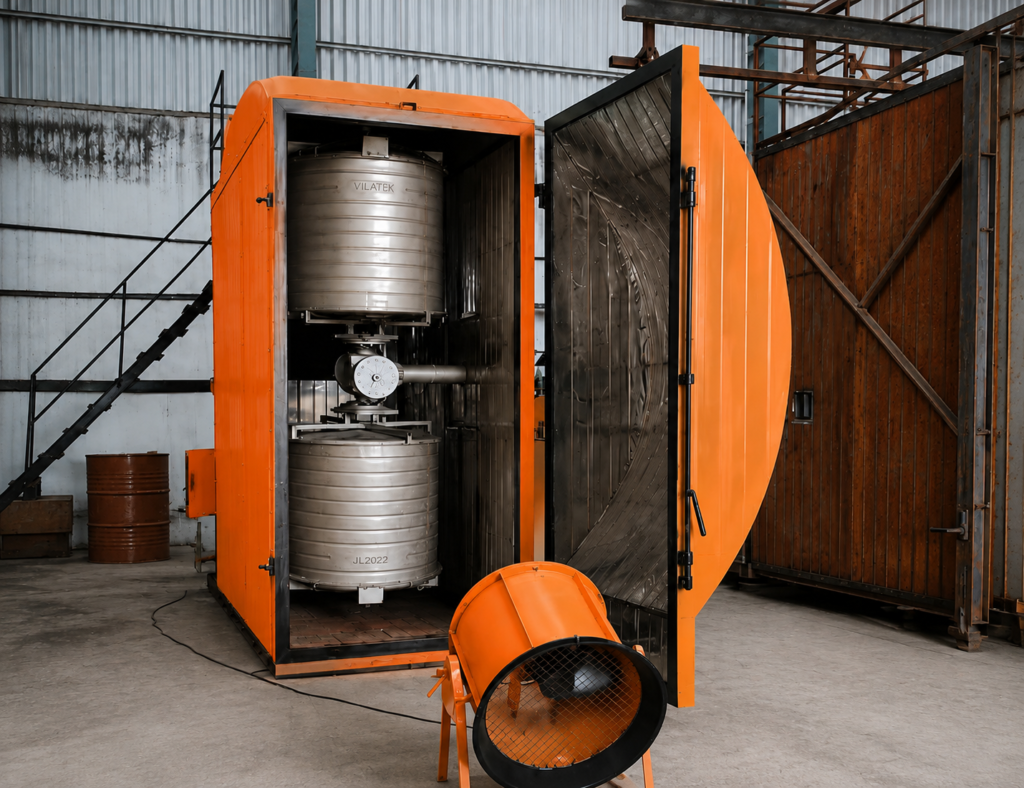

Single Arm Bi-Axial Rotational Rotomoulding Machine
A Single Arm Bi-Axial Rotational Rotomoulding Machine is one of the most widely used rotational molding systems for manufacturing hollow plastic products. The machine is designed with a single rotating arm that carries one or multiple molds and rotates them simultaneously on two perpendicular axes during the molding process.
Technical Specifications
| Model | Floor Space (Mtrs) | Straight Arm Swing (MM)* | Offset Arm Swing (MM)* | ||||
|---|---|---|---|---|---|---|---|
|
|
L |
W |
H |
Major* |
Minor |
Major* |
Minor |
|
NRP 500 X 2 |
5 |
3 |
4 |
2800 |
1000 |
– |
– |
|
NRP 1000 X 2 |
6 |
5 |
5 |
3600 |
1400 |
– |
– |
|
NRP 1000 X 4
|
7 |
5 |
7 |
4200 |
1400 |
– |
– |
|
NRP 2000 X 2
|
8 |
7 |
9 |
4400 |
1800 |
– |
– |
|
NRP 3000 X 2
|
10 |
8 |
10 |
5200 |
1900 |
– |
– |
|
NRP 5000 X 2
|
15 |
10 |
13 |
4800 |
2200 |
– |
– |
The bi-axial rotational movement ensures uniform distribution of molten plastic material throughout the mold cavity, resulting in seamless products with consistent wall thickness, excellent strength, and superior surface finish.
Single Arm Bi-Axial Rotomoulding Machines are ideal for small to medium-scale production and are extensively used for manufacturing water tanks, chemical storage tanks, road barriers, playground equipment, pallets, dustbins, furniture products, and customized plastic components.
With their simple design, easy operation, lower investment cost, and reliable performance, these machines are often preferred by new rotomoulding manufacturers and businesses looking for flexible production solutions.
Overview of Single Arm Bi-Axial Rotational Molding Technology
Single Arm Bi-Axial Rotational Molding Technology is based on the principle of heating and rotating a closed mold containing plastic powder.
The mold is mounted on a rotating arm and moves through heating and cooling stages while continuously rotating on both the major and minor axes. As the mold heats, the plastic powder melts and coats the internal surface evenly.
This rotational movement ensures uniform wall thickness throughout the product and eliminates the need for welding or joining operations. The resulting products are seamless, durable, and resistant to environmental stress.
The technology offers a cost-effective solution for manufacturing high-quality hollow plastic products across various industries.
Key Features
Single Arm Bi-Axial Rotational Rotomoulding Machines offer several features that improve operational efficiency and product quality.
- Single-arm production system
- Bi-axial rotational technology
- Uniform wall thickness control
- Energy-efficient heating system
- PLC-based operation
- Low maintenance requirements
- Reliable production performance
- Adjustable rotational speeds
- Robust machine construction
- Easy mold installation and removal
- User-friendly controls
- Air and water cooling options
- Compact machine design
- Cost-effective operation
These features make the machine suitable for a wide range of rotational molding applications.
NRP Machine Capacity
| Ltr Capacity | Machine Models | ||||||
|---|---|---|---|---|---|---|---|
|
|
NRP-500 X 2
|
NRP-1000 X 2
|
NRP-1000 X 4
|
NRP-2000 X 2
|
NRP-3000 X 2
|
NRP-5000 X 2
|
|
|
200 |
4 |
4 |
– |
6 |
6 |
8 |
|
|
300 |
2 |
4 |
– |
6 |
6 |
8 |
|
|
500 |
2 |
4 |
4 |
4 |
4 |
8 |
|
|
750 |
– |
2 |
4 |
4 |
4 |
4 |
|
|
1000 |
– |
2 |
4 |
4 |
4 |
4 |
|
|
1500 |
– |
– |
2 |
2 |
2 |
4 |
|
|
2000 |
– |
– |
2 |
2 |
2 |
2 |
|
Working Principle
The machine operates through a series of controlled heating and cooling cycles.
Material Loading
A measured quantity of thermoplastic powder is loaded into the mold based on the required product specifications and wall thickness.
Heating Cycle
The mold is transferred into the heating chamber where it rotates continuously on both major and minor axes.
Cooling Cycle
Air cooling, water spray cooling, or a combination of both is used to solidify the molded product while maintaining rotational movement.
Product Removal
Once the product has fully cooled and solidified, the mold is opened and the finished component is removed.

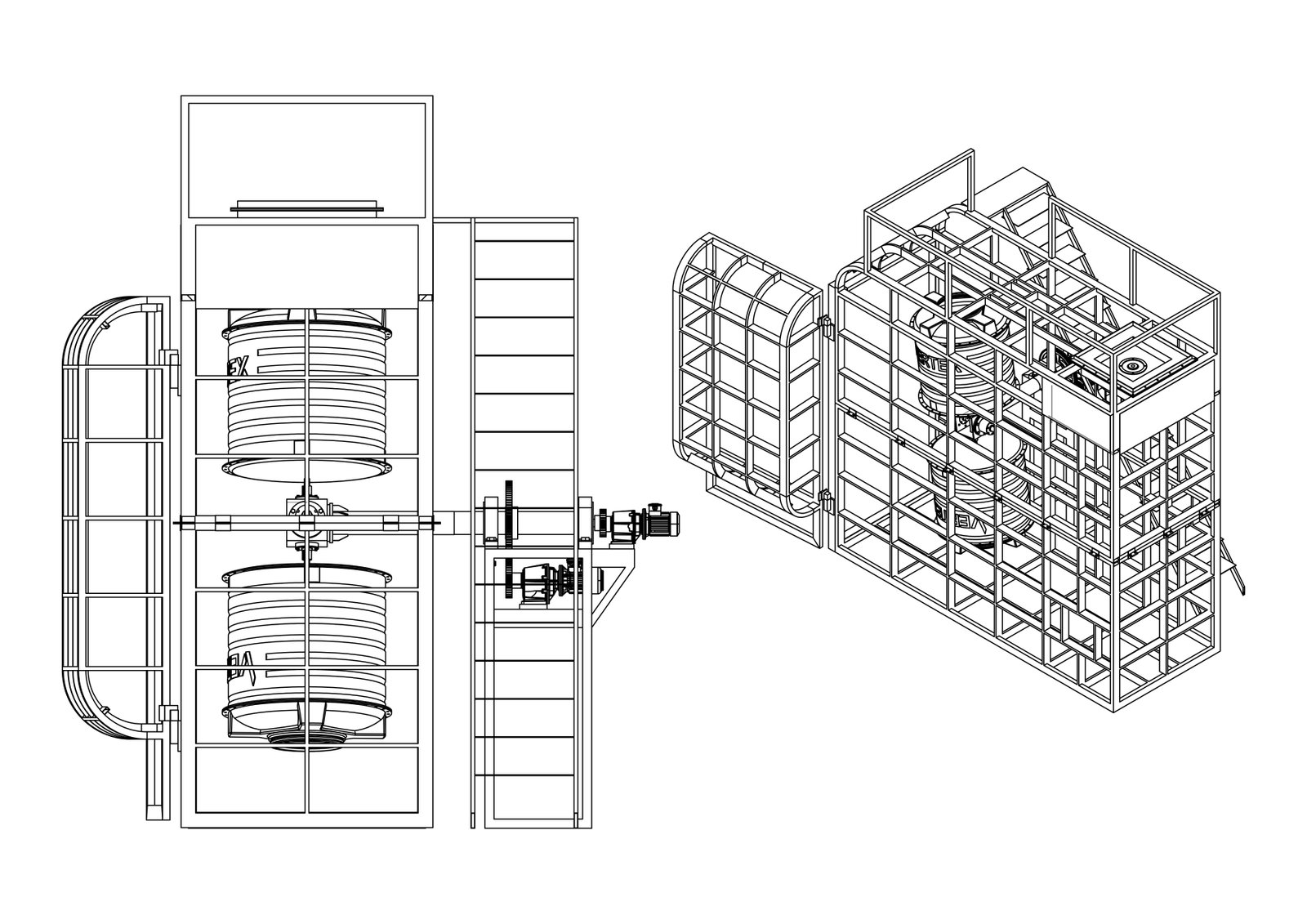

Machine Structure and Components
The Single Arm Bi-Axial Rotational Rotomoulding Machine consists of several essential components.
Single Rotating Arm
The rotating arm carries the mold and provides bi-axial movement during the molding process.
Heating Chamber
The insulated oven chamber provides controlled heating for efficient melting of plastic material.
Cooling Station
The cooling section reduces mold temperature and solidifies the molded product.
Mold Mounting Assembly
Heavy-duty fixtures securely hold molds during rotational movement.
Drive System
Motors, gearboxes, and transmission systems provide controlled rotation on both axes.
PLC Control Panel
The control system manages temperature, rotation speed, cycle timing, and safety functions.
Industrial Applications
Water Storage
Agriculture
Infrastructure
Industrial
Playground
Advantages of Single Arm Bi-Axial Rotational Rotomoulding Machine
Cost-Effective Investment
Lower initial investment compared to multi-arm rotomoulding machines.
Simple Operation
Easy machine operation and process management.
Uniform Product Quality
Bi-axial rotation ensures consistent wall thickness and material distribution.
Flexible Production
Suitable for manufacturing a wide range of plastic products.
Compact Installation
Requires less factory floor space than larger carousel systems.
Easy Maintenance
Simplified machine structure reduces maintenance complexity.
Limitations of Single Arm Bi-Axial Rotational Rotomoulding Machine
Despite its advantages, certain limitations should be considered.
Lower Production Capacity
Production output is lower compared to two-arm, three-arm, and four-arm systems.
Longer Idle Time
Heating, cooling, and loading operations occur sequentially, resulting in longer cycle times.
Limited Simultaneous Production
Only one arm is available for processing molds at a time.
Growth Limitations
Manufacturers with rapidly increasing production demands may eventually require multi-arm systems.
Why Choose N Line Roto Pvt. Ltd.
N Line Roto Pvt. Ltd., formerly known as Neelam Roto Plast, has been serving the rotational molding industry since 1993 with advanced machinery solutions and technical expertise.
The company specializes in manufacturing rotomoulding machines, pulveriser machines, extrusion systems, molds, and complete turnkey rotational molding plants.
Key Strengths
- Modern manufacturing facility
- Experienced engineering team
- Customized machinery solutions
- Energy-efficient machine designs
- Turnkey project execution
- Technical consultancy and support
- Global export capabilities
- Reliable after-sales service
Under the leadership of Mr. Dinesh Panchal, N Line Roto Pvt. Ltd. continues to provide innovative and dependable machinery solutions for manufacturers worldwide.
Frequently Asked Questions (FAQs)
It is a rotational molding machine with one rotating arm that rotates molds on two axes during the molding process.
Bi-axial rotation means the mold rotates simultaneously on both major and minor axes for uniform material distribution.
Water tanks, chemical tanks, road barriers, dustbins, playground equipment, furniture products, and industrial containers.
LLDPE, MDPE, and HDPE powders are commonly used.
Yes, it is ideal for small and medium-scale manufacturing operations.
Gas-fired, diesel-fired, and electric heating systems are available.
Cooling is performed using air circulation, water spray, or combined cooling systems.
Yes, machines can be supplied in semi-automatic and fully automatic versions.
Yes, rotational molding creates seamless one-piece hollow products.
Wall thickness depends on the quantity of plastic powder loaded into the mold.
Because of their industry experience, customized solutions, advanced manufacturing capabilities, and reliable technical support.
Modern heating systems and insulation help reduce energy consumption.
Yes, various molds can be mounted depending on production requirements.
Water storage, agriculture, infrastructure, industrial manufacturing, furniture, and household product industries.
No, rotational molding is a low-pressure manufacturing process.
No, the machine has a simple structure and low maintenance requirements.
Yes, machine size, arm configuration, and automation features can be customized.
Production cycles generally range from 20 to 60 minutes depending on product size and thickness.
Yes, the machine can manufacture large tanks depending on mold size and machine capacity.
Its affordability, simplicity, and flexibility for a wide range of products.
Related Products
Four Arm Bi Axial Rotational Rotomoulding Machine
A Four Arm Bi-Axial Rotational Rotomoulding Machine is a high-capacity rotational molding system specifically designed for large-scale production of hollow plastic products.
Three Arm Bi Axial Rotational Rotomoulding Machine
A Three Arm Bi-Axial Rotational Rotomoulding Machine is a high-production rotational molding system designed for manufacturing a wide range of hollow plastic products with maximum efficiency and consistent quality.

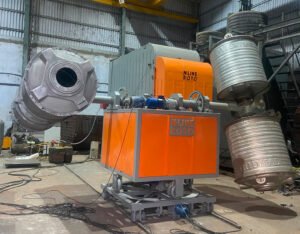

Two Arm Bi Axial Rotational Rotomoulding Machine
