Four Arm Bi-Axial Rotational Rotomoulding Machine
A Four Arm Bi-Axial Rotational Rotomoulding Machine is a high-capacity rotational molding system specifically designed for large-scale production of hollow plastic products. Equipped with four independently operating arms, the machine enables continuous manufacturing by simultaneously performing heating, cooling, loading, and unloading operations.
Technical Specifications
| Model | Floor Space (Mtrs) | Straight Arm Swing (MM)* | Offset Arm Swing (MM)* | ||||
|---|---|---|---|---|---|---|---|
|
|
L |
W |
H |
Major* |
Minor |
Major* |
Minor |
|
NRP 1000
|
15 |
11 |
7 |
3400 |
1600 |
– |
– |
|
NRP 2000
|
17 |
13 |
8 |
4300 |
1600 |
2900 |
1450 |
|
NRP 5000
|
20 |
14 |
7 |
3800 |
2800 |
3700 |
2300 |
|
NRP 10000 |
25 |
18 |
9 |
4600 |
3600 |
4500 |
2700 |
|
NRP 20000 |
28 |
20 |
10 |
6000 |
3600 |
5700 |
3000 |
The bi-axial rotational mechanism allows molds to rotate on both the major and minor axes, ensuring uniform distribution of molten plastic material throughout the mold cavity. This results in seamless products with consistent wall thickness, superior strength, and excellent surface finish.
Four-arm rotomoulding machines are widely used by manufacturers producing water tanks, chemical storage tanks, road barriers, playground equipment, pallets, industrial containers, furniture products, and custom-molded plastic components. Their high productivity and operational flexibility make them ideal for large-scale industrial manufacturing facilities.
Modern Four Arm Bi-Axial Rotational Rotomoulding Machines incorporate advanced PLC automation, energy-efficient heating systems, intelligent process controls, and heavy-duty structural designs to ensure reliable operation and maximum production efficiency.
Overview of Four Arm Bi-Axial Rotational Molding Technology
Four Arm Bi-Axial Rotational Molding Technology is developed to maximize machine utilization and manufacturing output.
The machine consists of four independently rotating arms mounted on a central carousel or turret system. Each arm can operate at different stages of the production cycle simultaneously. While one arm is in the heating chamber, another may be cooling, while the remaining arms are being loaded or unloaded.
This continuous workflow significantly reduces idle time and increases production capacity. The bi-axial rotation ensures that plastic powder melts and coats every internal surface of the mold evenly, producing high-quality seamless products with excellent dimensional stability.
The technology is particularly beneficial for manufacturers handling high-volume production requirements across multiple product categories.
Key Features
Four Arm Bi-Axial Rotational Rotomoulding Machines offer several advanced features.
- Four-arm continuous production system
- Bi-axial rotational technology
- Independent arm operation
- Maximum production capacity
- Uniform wall thickness control
- PLC-based automation system
- Energy-efficient heating chamber
- Adjustable rotational speed settings
- Heavy-duty structural design
- Simultaneous heating and cooling operations
- Fast mold changeover capability
- Air and water cooling options
- Reduced production downtime
- User-friendly interface
These features help manufacturers achieve high production efficiency while maintaining superior product quality.
NRP Machine Capacity
| Ltr Capacity VERTICAL | Machine Models | ||||||
|---|---|---|---|---|---|---|---|
|
|
NRP-1000
|
NRP-2000
|
NRP-5000
|
NRP-10000
|
|||
|
200 |
4 |
4 |
10 |
10 |
|||
|
300 |
4 |
4 |
10 |
10 |
|||
|
500 |
4 |
4 |
8 |
10 |
|||
|
750 |
2 |
2 |
4 |
8 |
|||
|
1000 |
2 |
2 |
4 |
8 |
|||
|
1500 |
– |
1 |
2 |
4 |
|||
|
2000 |
– |
1 |
2 |
4 |
|||
|
3000 |
– |
– |
1 |
2 |
|||
|
5000 |
– |
– |
1 |
1 |
|||
|
7000 |
– |
– |
– |
1 |
|||
|
7500 |
– |
– |
– |
1 |
|||
|
8000 |
– |
– |
– |
1 |
|||
|
10000 |
– |
– |
– |
1 |
|||
Working Principle
The machine operates through synchronized molding cycles across four rotating arms.
Material Loading
A measured quantity of thermoplastic powder is loaded into the mold according to the required product specifications.
Heating Cycle
The loaded arm enters the heating chamber where the mold rotates continuously on both major and minor axes.
Cooling Cycle
Controlled cooling using air circulation, water spray, or a combination of both solidifies the molded product while maintaining rotational movement.
Product Removal
Once cooling is completed, the mold is opened, and the finished product is removed. The mold is then prepared for the next production cycle.

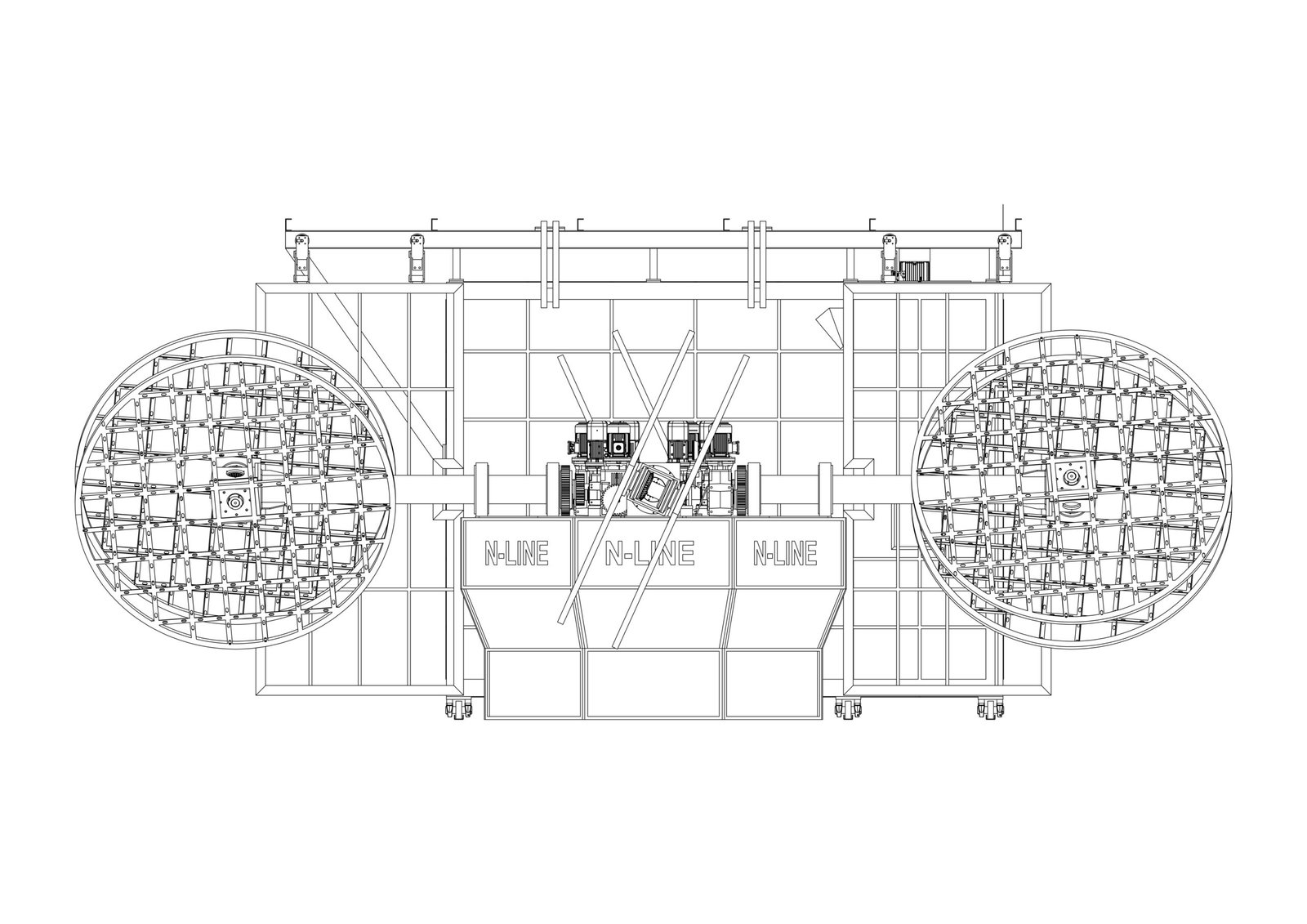

Machine Structure and Components
The Four Arm Bi-Axial Rotational Rotomoulding Machine consists of several precision-engineered systems.
Central Carousel Assembly
The carousel supports four rotating arms and indexes them between various production stations.
Four Independent Rotating Arms
Each arm operates independently and performs bi-axial rotational movement during molding.
Heating Chamber
The insulated heating chamber provides uniform temperature distribution for efficient melting of plastic material.
Cooling Station
The cooling system utilizes air cooling, water spray cooling, or combined cooling methods to solidify products.
Mold Mounting Assembly
Heavy-duty mounting fixtures securely hold molds of different sizes and configurations.
Drive System
Precision motors, gearboxes, and transmission assemblies provide accurate rotational control on both axes.
Industrial Applications
Water Storage
Agriculture
Infrastructure
Industrial
Marine
Advantages of Four Arm Bi-Axial Rotational Rotomoulding Machine
Maximum Production Capacity
Four arms allow continuous operation and significantly increase production output.
Reduced Cycle Downtime
Simultaneous heating, cooling, loading, and unloading improve machine utilization.
Uniform Product Quality
Bi-axial rotation ensures consistent wall thickness and material distribution.
High Manufacturing Efficiency
Continuous production cycles increase productivity and profitability.
Flexible Production Capability
Different molds and product types can be processed simultaneously.
Lower Cost Per Unit
High-volume production reduces overall manufacturing costs.
Limitations of Four Arm Bi-Axial Rotational Rotomoulding Machine
Despite its advantages, certain limitations should be considered.
Higher Initial Investment
Four-arm systems require greater capital investment compared to smaller machines.
Large Installation Area
The machine requires substantial factory floor space.
Complex Maintenance Requirements
Additional arms and automation systems require routine maintenance and technical expertise.
Skilled Operators Required
Efficient machine operation requires trained personnel and process knowledge.
Why Choose N Line Roto Pvt. Ltd.
N Line Roto Pvt. Ltd., formerly known as Neelam Roto Plast, has been delivering advanced rotational molding machinery and industrial solutions since 1993.
The company specializes in manufacturing rotomoulding machines, pulveriser machines, extrusion systems, molds, and complete turnkey rotational molding plants.
Key Strengths
- Modern manufacturing infrastructure
- Experienced engineering professionals
- Customized machine development
- Energy-efficient machinery solutions
- Complete turnkey project execution
- Technical consultancy and support
- Global export capabilities
- Reliable after-sales service
Under the leadership of Mr. Dinesh Panchal, N Line Roto Pvt. Ltd. continues to provide innovative and dependable machinery solutions that help manufacturers improve productivity and product quality.
Frequently Asked Questions (FAQs)
It is a high-capacity rotational molding machine equipped with four independently operating arms for continuous production.
Four arms maximize productivity by allowing simultaneous heating, cooling, loading, and unloading operations.
Bi-axial rotation means the mold rotates on both major and minor axes to ensure uniform material distribution.
Water tanks, chemical tanks, road barriers, industrial containers, playground equipment, furniture products, and marine components.
LLDPE, MDPE, and HDPE powders are commonly used.
Yes, it is specifically designed for high-volume industrial manufacturing.
Gas-fired, diesel-fired, and electric heating systems can be used.
Cooling is performed using air circulation, water spray, or combined cooling systems.
Yes, machines can be supplied in semi-automatic or fully automatic configurations.
Yes, simultaneous multi-arm operation significantly increases productivity.
Yes, rotational molding produces seamless one-piece hollow products.
Wall thickness depends on the quantity of plastic powder loaded into the mold.
Yes, different molds can be used depending on machine configuration and production planning.
Modern insulation and optimized burner systems help reduce energy consumption.
Water storage, agriculture, infrastructure, industrial manufacturing, furniture, marine, and playground equipment industries.
No, rotational molding is a low-pressure manufacturing process.
Yes, machine size, arm configuration, and automation levels can be customized.
Routine inspection of motors, gearboxes, burners, cooling systems, and control panels is recommended.
Its ability to deliver continuous high-volume production with minimal downtime.
Because of their industry expertise, advanced manufacturing capabilities, customized solutions, and dependable technical support.
