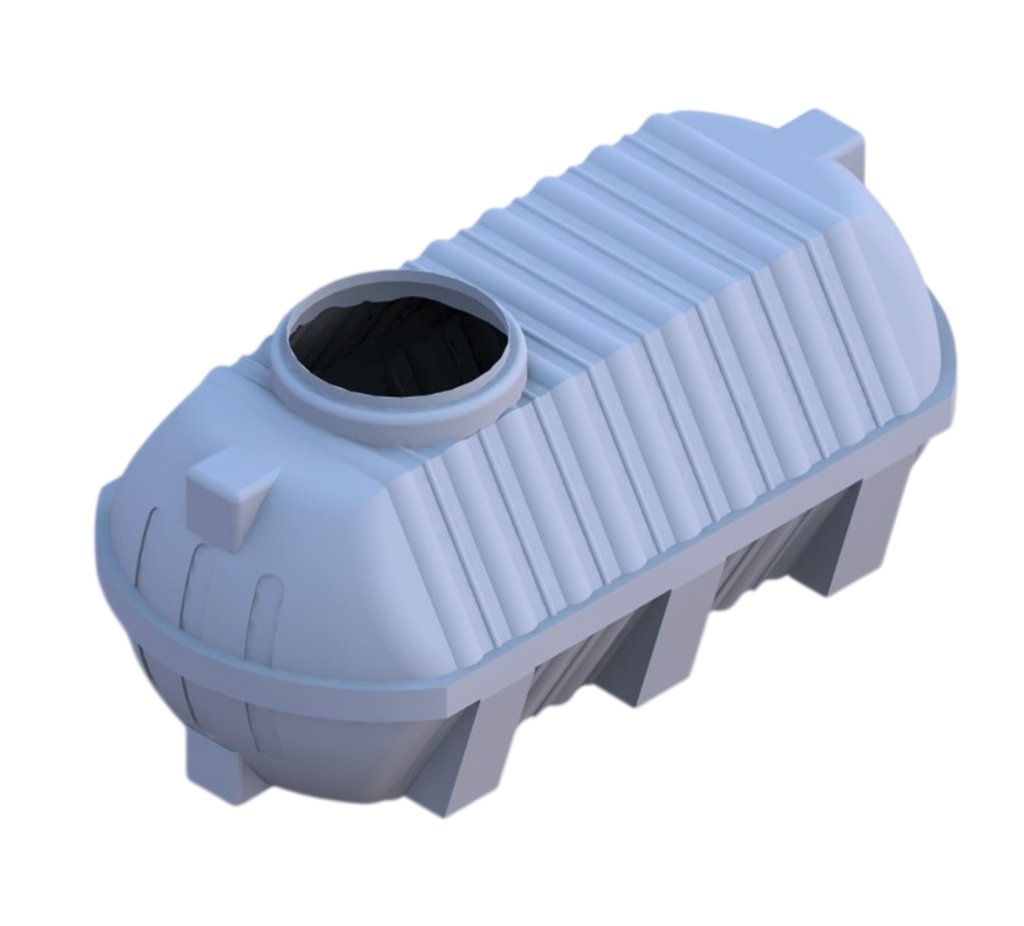

Horizontal Plastic Water Tank Mould

Horizontal water tanks maximize storage volume where placing water tanks vertically isn’t possible due to space or other constraints. Plastic water tank manufacturers need horizontal water tank molds to manufacture horizontal tanks for different purposes,  exclusive to the agricultural, transportation, and residential sectors, including;

  • Low-profile loft tanks
  • Heavy-duty underground storage
  • Truck-mounted transit units

N-Line Roto horizontal plastic water tank molds are engineered to guarantee dimensional stability of the tanks. This ensures the tanks you build with our mold can withstand extreme pressure, severe vibration, soil pressure, and constant thermal shock.

Every mold we build is optimized for rapid cycle times, allowing you to maximize daily production without compromising on the uniform wall thickness your B2B buyers demand.

Horizontal Plastic Water Tank Mould

Understanding Horizontal Plastic Water Tank Molds

To create a product that has a long horizontal cavity means overcoming several unique thermodynamic challenges. Unlike vertical configurations, for horizontal plastic water tank production, the polymer powder must travel across a wider, flatter surface area during rotation.

Our horizontal molds manage this flow precisely. Machined from high-grade mild steel or CNC-routed aluminum, the molds we provide boast exceptional thermal conductivity. This translates directly to faster heating and cooling cycles inside your ovens.

We engineer the parting lines with extreme precision and produce molds with tight tolerances, which means minimal flash generation. As a result, it reduces the labor hours your team spends on secondary trimming operations. Moreover, when using our molds, the plastic horizontal water tanks you build will have advanced venting architectures that prevent internal gas buildup during the heating phase, eliminating blowholes and surface defects that cause QC rejections.

By prioritizing heat transfer efficiency and mechanical rigidity, these molds resist warping even after thousands of high-temperature rotomolding cycles. The result is a robust, repeatable production asset that consistently outputs load-bearing tanks ready for rugged mobile or subterranean applications.

Key Features of N-Line Roto Horizontal Plastic Water Tank Mold

We build molds that actively improve your plant’s throughput and profitability.

High-Yield Thermal Conductivity

Precision-engineered alloys accelerate plastic melting and solidification of the molded product, which directly reduces cycle times.

Precision-Milled Parting Lines

Tight closures virtually eliminate flash, cutting down post-production trimming costs and ensuring a seamless finished product.

Heavy-Duty Clamping Systems

Industrial-grade fasteners secure the cavity under thermal expansion, ensuring absolute dimensional accuracy.

Universal Machine Compatibility

The molds we build fit effortlessly onto standard Shuttle, Bi-axial, Clamshell, or Rock N Roll rotomolding equipment.

Optimized Venting

Calibrated exhaust structures added to the mold assembly we provide prevent gas entrapment and eliminate surface pockmarks.

Warp-Resistant Architecture

N-Line Roto molds are built to endure aggressive, continuous heating and cooling shifts without structural fatigue.

Technical Specifications

Specification Details
Mold Material
Mild Steel / Aluminum
Manufacturing Method
Fabrication / CNC Machining
Product Capacity
200 Liters – 5000 Liters
Surface Finish
Smooth / Textured
Mold Structure
Multi-Part

How Does the Horizontal Plastic Water Tank Mold Work?

The efficiency of the rotational molding process depends entirely on the thermal performance of the tooling.

Resin Loading

Start the process by loading the mold lower cavity with precise amounts of pulverized polyethylene. Due to the wide-aperture design of the water tank mold we provide, loading polymer is fast and spill-free.

Biaxial Thermal Processing

Mounted inside the oven, the mold absorbs heat rapidly due to the thin-wall tooling we engineer within the mold, and this ensures that heat transfers instantly to the powder, accelerating the melt phase as the machine rotates on two axes.

Flow and Wall Formation

The internal geometry guides the viscous polymer evenly across the horizontal span while rotating on its two axes. This continuous motion under low heat and pressure prevents pooling at the center or thinning at the ribbed edges.

Controlled Cooling

Once properly built, the mold then transfers to the cooling chamber, where the heat dissipates at a steady, engineered rate. This prevents plastic shrinkage and warpage, allowing the solidified horizontal tank to be demolded quickly and safely.

The Design Mechanism and Process of Our Horizontal Plastic Water Tank Mold

Every component of our horizontal tooling is built to endure the shop-floor abuse and high-volume output.

Mold Cavity Shape

The cavity of the mold that will give your product the final shape undergoes rigorous testing to determine the exact dimensions and capacity of the tank.

Flash-Free Parting Lines

Our engineers use interlocking flanges to exact specifications, forming a tight seal that prevents the resin from leaking, and this reduces manual effort for finishing the product.

Thermal Clamping Setup

High-tensile hardware keeps the mold firmly sealed within the cavity even during the peak oven temperatures, preventing edge distortion and shape deformations.

Dynamic Venting System

Strategically placed Teflon vents release expanded gases from the mold we build for your products.  This prevents cavity pressurization and guarantees a flawless interior tank wall.

Universal Mounting Frame

Heavy-duty steel brackets allow for rapid changeovers as the mold frame balances perfectly on your machine’s spider arm, reducing wear on your machine’s gearboxes.

Surface Treatment

Internally polished plastic water tanks ensure frictionless demolding and an impeccable final product appearance.

Industrial Applications

Mobile water tanks

Transportation

Agricultural

Agriculture

Automotive

Automotive

Water Storage

Industrial Facilities

Municipal Services

Advantages of Horizontal Plastic Water Tank Mold

Investing in premium tooling fundamentally alters your production economics.

Weld-Free Tank Production

The horizontal plastic water tank mold we build and provide eliminates stress concentrations due to the perfectly even polymer distribution configurations. This prevents the water storage tanks from rupturing under extreme pressure and heavy liquid surge.

Maximum Daily Output

Since our molds are built to handle extreme heat transfer during the molding process, this ensures the rotomolding machine spends less time in the oven and cooling bay, increasing your daily tank yield.

Market Expansion

The large size, durability, and strength of the water tanks you can build with our molds give you the capability to serve lucrative niche markets, supplying low-clearance loft tanks for residential builders to agricultural spraying equipment.

Scrap Reduction

Precision engineering prevents material burning and thinning during the molding process, and this reduces your rejection rates and raw material waste.

Limitations of Horizontal Plastic Water Tank Mold

Inherent Cycle Lengths

Rotomolding naturally requires longer heating and cooling phases compared to injection molding. However, N-Line Roto machines are optimized with smart thermal designs that mitigate this delay significantly.

Handling Requirements

Due to their elongated footprint and industrial-grade steel construction, maneuvering these horizontal molds requires overhead cranes or heavy-duty forklifts during changeovers, which can complicate transfers, installation, and repair work.

Polymer Restrictions

The horizontal plastic water tank mold we build is specifically calibrated for rotomolding-grade thermoplastics, primarily LLDPE and HDPE, limiting the use of certain alternative resins.

Draft Angle Necessities

Sharp internal corners make it difficult to take the final product out of the mold and hence must be avoided. To ensure this, the mold design requires specific draft angles to ensure the tank releases smoothly without sticking to the cavity walls.

Why is N-Line Roto the Best Horizontal Plastic Water Tank Mold Provider?

At N-Line Roto, we do not just build molds; we engineer water storage tank production solutions. Working in this industry since 1993, we leverage over three decades of hard-won industrial expertise to build and deliver rotomolding rotational machines, systems, and molds.

This dual expertise means every horizontal plastic water tank mold we manufacture is perfectly calibrated for real-world plant conditions.

  • We utilize advanced CAD/CAM software and CNC machining to deliver tooling that guarantees uniform wall thickness and rapid heat transfer.
  • Our molds integrate flawlessly with your existing infrastructure, especially covering Clamshell, Bi-axial, or Rock N Roll setup.
  • We also operate as your technical partner and provide post-installation assistance, repair, and staff training.
  • From initial mold design and equipment selection to on-site installation and full turnkey plant commissioning, N-Line Roto ensures your facility runs at peak profitability.

Frequently Asked Questions (FAQs)

Will the horizontal plastic water tank mold fit into our existing Rock N Roll or Bi-axial machinery?

Provided you share the type of molding machine you have right now, we engineer the mounting brackets and structural frames to fit with the machine. Even though the brackets and frames we build have a universal fit, we can always make some customizations according to the machine you have to ensure an even better fit.

How do you ensure that horizontal molds can work through the thermal distribution challenges of horizontal tanks?

It’s true that horizontal plastic water tank molds can pool or collect in one corner if not designed correctly. We optimize the draft angles and utilize high-conductivity metals to ensure heat reaches every part and corner of the mold as quickly as it reaches the center. This guarantees consistent LLDPE melt and uniform wall thickness from end to end.

What maintenance is required to keep the parting lines flash-free?

Due to the mechanism we use to build our interlocking flanges within the molds to have zero space between the joints, the wear is minimal. Standard maintenance simply involves keeping the mating surfaces clean of burnt polymer residue and regularly inspecting the clamping bolts for heat-induced fatigue.

Can we produce multi-layer (3-layer or 4-layer) tanks with these molds?

You can build multi-layer plastic water storage tanks, as the venting systems and thermal profiles of the molds are designed to handle the distinct heating cycles required for multi-layer foam and UV-stabilized tank production, allowing you to manufacture premium-grade insulated tanks.

What is the expected lifespan of an N-Line Roto horizontal mold?

Built for heavy industrial abuse, our molds endure thousands of high-temperature cycles without warping. With standard shop floor care and proper demolding practices, these assets will deliver a high ROI for years of continuous production.
