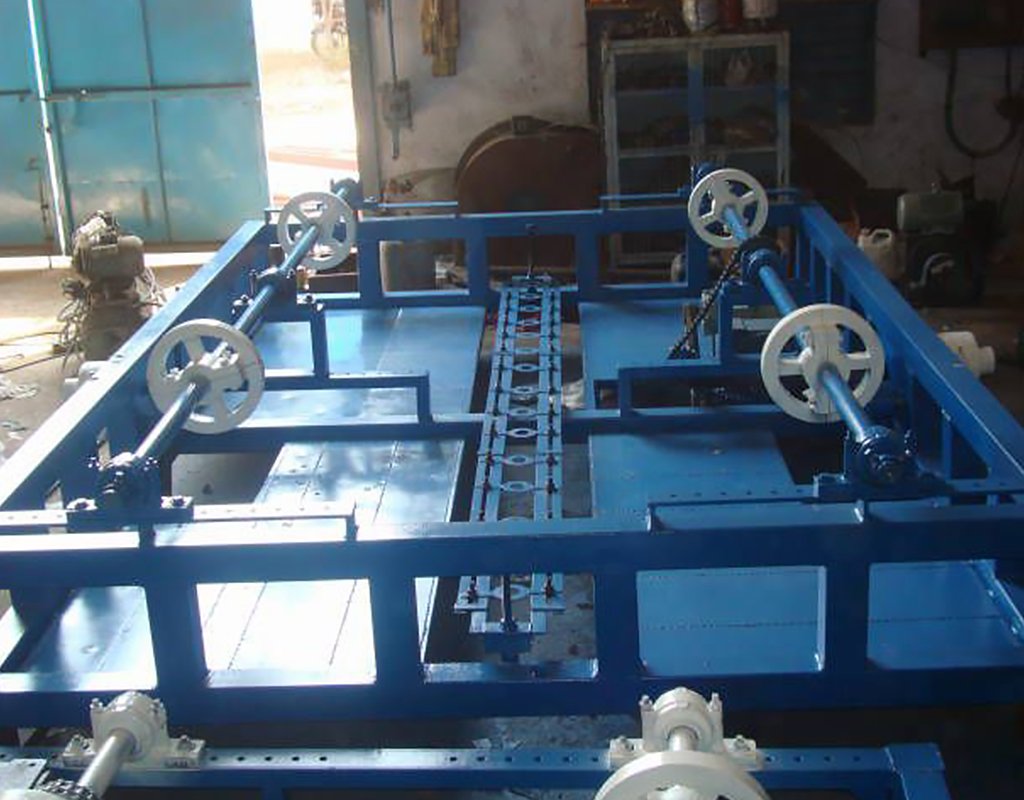

Open Flame Rock N Roll Rotomoulding Machine
An Open Flame Rock N Roll Rotomoulding Machine is a specialized rotational molding system designed for manufacturing long, hollow plastic products such as horizontal water tanks, septic tanks, boats, kayaks, agricultural containers, and industrial storage tanks. The machine combines the proven Rock N Roll rotational molding process with a direct open flame heating system, enabling efficient heat transfer and cost-effective production.
Technical Specifications
| Specification | Details |
|---|---|
|
Machine Type |
Bi-Axial Rotomoulding Machine |
|
Power Supply |
Electric |
|
Voltage |
415 V |
|
Phase |
Three Phase |
|
Control System |
PLC Based |
Unlike closed oven systems, the Open Flame Rock N Roll Machine utilizes strategically positioned gas burners that apply heat directly around the mold surface. During the molding cycle, the mold rotates continuously on its primary axis while simultaneously rocking on a secondary axis. This movement ensures even distribution of molten plastic material throughout elongated molds.
The open flame heating method provides faster heat transfer, reduced energy consumption, and lower operating costs, making it a preferred choice for manufacturers producing long and cylindrical plastic products in medium to high production volumes.
Modern Open Flame Rock N Roll Rotomoulding Machines incorporate PLC-based controls, precision rotational mechanisms, advanced burner systems, and safety features to ensure reliable performance and consistent product quality.
Overview of Open Flame Rock N Roll Rotational Molding Technology
Open Flame Rock N Roll Rotational Molding Technology is specifically developed for manufacturing elongated hollow plastic products that require uniform wall thickness and excellent structural strength.
The process combines two simultaneous movements:
- Continuous rotation along the primary axis
- Controlled rocking motion along the secondary axis
Instead of using a fully enclosed oven, direct flame burners generate heat around the rotating mold. This heating method allows rapid temperature buildup and efficient plastic melting.
The rocking movement helps distribute molten plastic material evenly inside long molds, ensuring uniform wall thickness throughout the product. The result is a seamless, durable product with excellent impact resistance and dimensional stability.
The technology is widely used in industries requiring large cylindrical or elongated plastic products.
Key Features
Open Flame Rock N Roll Rotomoulding Machines are equipped with numerous performance-enhancing features.
- Direct open flame heating system
- Rocking and rotational motion technology
- Rapid heat transfer capability
- Energy-efficient burner design
- PLC-based control system
- Adjustable rotational speeds
- Heavy-duty machine construction
- Uniform wall thickness production
- Efficient cooling system
- Easy mold mounting mechanism
- User-friendly operation
- Reduced production cycle times
- Low maintenance requirements
- Cost-effective manufacturing process
These features help manufacturers achieve high productivity while maintaining superior product quality.
Working Principle
The machine operates through a sequence of loading, heating, rotation, cooling, and demolding processes.
Material Loading
A measured quantity of polyethylene powder is loaded into the mold according to the required product specifications and wall thickness.
Heating Process
Once the mold is securely closed, it begins rotating on its primary axis while rocking on the secondary axis.
Cooling Cycle
After the heating process is completed, the mold is transferred to the cooling station.
Product Removal
Once the product has completely solidified, the mold is opened and the finished product is removed.
Machine Structure and Components
The Open Flame Rock N Roll Rotomoulding Machine consists of several critical components.
Rotating Frame Assembly
The rotating frame supports the mold and provides primary rotational movement during production.
Rocking Mechanism
The rocking system moves the mold back and forth along the secondary axis to ensure uniform material distribution.
Open Flame Burner System
High-efficiency gas burners provide direct heating to the mold surface for rapid heat transfer.
Mold Assembly
Steel or aluminum molds define the final shape and dimensions of the product.
Cooling Station
The cooling section uses air circulation, water spray, or combined cooling methods to solidify products.
Drive System
Motors and gearboxes control rotational speed and rocking movement.
Industrial Applications
Water Storage
Agriculture
Construction
Industrial
Marine
Advantages of Open Flame Rock N Roll Rotomoulding Machine
Faster Heating Cycles
Direct flame heating allows rapid heat transfer and shorter production cycles.
Lower Operating Costs
Efficient burner systems help reduce energy consumption and manufacturing expenses.
Ideal for Long Products
Rocking motion ensures proper material distribution in elongated molds.
Uniform Wall Thickness
Combined rocking and rotational movement provides consistent product quality.
Seamless Product Construction
Products are manufactured as a single piece without joints or welding.
Flexible Manufacturing
Suitable for a wide range of cylindrical and elongated products.
Limitations of Open Flame Rock N Roll Rotomoulding Machine
Despite its advantages, certain limitations should be considered.
Requires Proper Burner Management
Direct flame heating requires accurate burner adjustment and monitoring.
Limited Product Geometry
Best suited for long, cylindrical, and elongated products.
Safety Precautions Required
Open flame operation requires appropriate safety systems and trained operators.
Large Installation Area
Industrial-scale machines require adequate factory floor space.
Why Choose N Line Roto Pvt. Ltd.
N Line Roto Pvt. Ltd., formerly known as Neelam Roto Plast, has been manufacturing advanced rotational molding machinery since 2006.
The company specializes in rotomoulding machines, pulveriser machines, extrusion systems, molds, and complete turnkey rotational molding solutions.
Key Strengths
- Advanced manufacturing infrastructure
- Experienced engineering professionals
- Customized machinery solutions
- Energy-efficient machine designs
- Complete turnkey project execution
- Technical consultancy and support
- Global export capabilities
- Reliable after-sales service
Under the leadership of Mr. Dinesh Panchal, N Line Roto Pvt. Ltd. continues to provide innovative and dependable machinery solutions for rotational molding manufacturers worldwide.
Frequently Asked Questions (FAQs)
It is a rotational molding machine that uses direct flame heating combined with rocking and rotational motion to manufacture elongated hollow plastic products.
Horizontal water tanks, septic tanks, boats, kayaks, agricultural tanks, industrial containers, and chemical storage tanks.
Open flame heating provides faster heat transfer, reduced cycle times, and lower operating costs.
LLDPE, MDPE, and HDPE powders are commonly processed.
Rocking motion ensures uniform distribution of molten plastic inside long and cylindrical molds.
LPG, PNG, and natural gas are commonly used.
Yes, products are molded as a single piece without joints or welds.
Air cooling, water spray cooling, and combined cooling systems.
Yes, machines are available in semi-automatic and fully automatic configurations.
Yes, it is specifically designed for large cylindrical and horizontal tanks.
The quantity of plastic powder loaded into the mold determines wall thickness.
Yes, direct flame heating improves thermal efficiency and reduces energy consumption.
Water storage, agriculture, marine, construction, industrial manufacturing, and chemical processing industries.
No, rotational molding is a low-pressure manufacturing process.
Yes, molds can be designed according to product requirements.
Routine inspection of burners, motors, gearboxes, and control systems is recommended.
Yes, rotomoulded products offer excellent resistance to chemicals, UV exposure, and corrosion.
Yes, larger models are designed for continuous industrial manufacturing.
Fast heating, lower operating costs, and efficient production of elongated products.
Because of their extensive industry experience, customized machinery solutions, advanced manufacturing capabilities, and dependable technical support.
Related Products

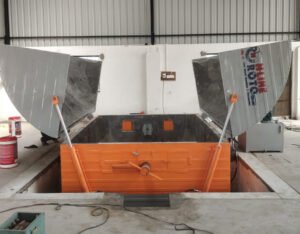

Closed Oven Rock N Roll Rotomoulding Machine
