Closed Oven Rock N Roll Rotomoulding Machine
A Closed Oven Rock N Roll Rotomoulding Machine is an advanced rotational molding system specifically engineered for manufacturing long, hollow plastic products with superior heating efficiency and process control. Unlike conventional Rock N Roll machines, this system incorporates a fully enclosed oven chamber that provides uniform heat distribution and minimizes heat loss during production.
Technical Specifications
| Specification | Details |
|---|---|
|
Machine Type |
Bi-Axial Rotomoulding Machine |
|
Power Supply |
Electric |
|
Voltage |
415 V |
|
Phase |
Three Phase |
|
Control System |
PLC Based |
The machine combines rotational movement on the primary axis with a controlled rocking motion on the secondary axis, allowing thermoplastic material to coat elongated molds evenly. The closed oven design enhances thermal efficiency, reduces energy consumption, and improves product consistency.
This technology is widely used for manufacturing horizontal water tanks, septic tanks, boats, kayaks, agricultural tanks, industrial containers, and other large hollow plastic products. The closed oven configuration helps achieve excellent wall thickness uniformity, smooth surface finish, and high structural integrity.
Modern Closed Oven Rock N Roll Rotomoulding Machines feature PLC-based controls, automated cycle management, optimized burner systems, and advanced safety mechanisms that ensure reliable and efficient production.
Overview of Closed Oven Rock N Roll Rotational Molding Technology
Closed Oven Rock N Roll technology is designed to overcome the challenges associated with molding large and elongated hollow plastic products.
The process utilizes a rotating motion along the main axis while simultaneously rocking the mold on a secondary axis. The enclosed oven chamber maintains a stable and controlled temperature environment throughout the heating cycle, ensuring consistent melting and distribution of plastic powder.
Compared to open heating systems, the closed oven design significantly improves thermal efficiency, reduces heat loss, and provides better process repeatability. This results in enhanced product quality, lower operating costs, and improved production efficiency.
The technology is ideal for producing seamless plastic products that require high strength, dimensional accuracy, and long service life.
Key Features
Closed Oven Rock N Roll Rotomoulding Machines offer numerous features that improve operational performance and product quality.
- Fully enclosed insulated oven design
- Uniform heat distribution system
- Rocking and rotational motion technology
- Energy-efficient burner operation
- PLC-based automation controls
- Adjustable rotational speed settings
- Reduced fuel consumption
- Enhanced product consistency
- Robust machine structure
- Easy mold installation and removal
- Improved operator safety
- Low maintenance requirements
These features help manufacturers achieve higher productivity and superior product quality.
Working Principle
The machine operates through a sequence of loading, heating, rotation, cooling, and demolding processes.
Material Loading
A predetermined quantity of polyethylene powder is loaded into the mold. The amount of material used determines the final wall thickness of the molded product.
Heating Cycle
The enclosed oven maintains consistent temperature distribution, ensuring complete melting and uniform coating of plastic material inside the mold cavity.
Cooling Process
Controlled air or water-assisted cooling is applied while maintaining rotational movement to prevent deformation and ensure dimensional stability.
Product Removal
After the product has fully solidified, the mold is opened and the finished plastic component is removed. The mold is then prepared for the next production cycle.
Machine Structure and Components
The Closed Oven Rock N Roll Rotomoulding Machine consists of several precision-engineered components.
Closed Oven Chamber
The insulated oven chamber minimizes heat loss and provides uniform heating conditions throughout the molding cycle.
Rotating Arm Assembly
The rotating arm supports the mold and provides continuous rotation during the heating and cooling stages.
Rocking Mechanism
The rocking system ensures even distribution of molten plastic inside elongated molds.
High-Efficiency Burner System
The burner system generates controlled heat inside the closed oven, improving thermal efficiency and reducing fuel consumption.
Cooling Station
The cooling section reduces mold temperature gradually, allowing the product to solidify uniformly.
Mold Assembly
Aluminum or fabricated steel molds are mounted on the machine according to product requirements.
Industrial Applications
Water Storage
Agriculture
Construction
Industrial
Marine
Advantages of Closed Oven Rock N Roll Rotomoulding Machine
Superior Heat Retention
The enclosed oven minimizes heat loss and improves thermal efficiency.
Uniform Wall Thickness
Combined rocking and rotational movement ensures even material distribution.
Reduced Energy Consumption
Efficient oven insulation lowers fuel usage and operating costs.
Enhanced Product Quality
Stable temperature conditions result in consistent molding quality.
Seamless Product Manufacturing
Products are molded as a single piece without joints, welds, or weak points.
Higher Production Efficiency
Improved heat management shortens cycle times and increases productivity.
Limitations of Closed Oven Rock N Roll Rotomoulding Machine
Despite its numerous advantages, certain limitations should be considered.
Higher Initial Investment
The enclosed oven design may require greater capital investment compared to simpler systems.
Large Installation Area
Industrial-scale machines require adequate production space.
Longer Setup Time
Changing large molds may require additional setup and handling time.
Skilled Operation Required
Proper control of heating and rotational parameters is essential for optimal results.
Why Choose N Line Roto Pvt. Ltd.
N Line Roto Pvt. Ltd., formerly known as Neelam Roto Plast, has been serving the rotational molding industry since 2006 with innovative machinery solutions and technical expertise.
The company manufactures advanced rotomoulding machines, pulveriser machines, extruder machines, molds, and complete turnkey plant solutions.
Key Strengths
- Advanced manufacturing facility
- Experienced engineering team
- Customized machine design
- Energy-efficient machinery solutions
- Turnkey project execution
- Technical consultation and support
- Global export presence
- Reliable after-sales service
Under the leadership of Mr. Dinesh Panchal, N Line Roto Pvt. Ltd. continues to deliver high-performance machinery designed to meet modern industrial requirements.
Frequently Asked Questions (FAQs)
It is a rotational molding machine that combines rocking and rotational movements with a fully enclosed oven for efficient heating and uniform product formation.
Horizontal water tanks, septic tanks, boats, kayaks, industrial containers, and agricultural tanks.
It improves heat retention, reduces energy consumption, and provides uniform heating.
LLDPE, HDPE, and MDPE powders are commonly processed.
Yes, controlled heating conditions produce consistent wall thickness and smooth surface finishes.
Gas-fired, diesel-fired, and electric heating systems can be used.
Yes, the insulated oven significantly reduces heat loss and fuel consumption.
Yes, it is ideal for large cylindrical and horizontal tanks.
Air cooling and water-assisted cooling systems are commonly employed.
Yes, machines can be supplied in semi-automatic or fully automatic configurations.
Yes, rotational molding produces one-piece seamless products.
The quantity of plastic powder loaded into the mold determines wall thickness.
Yes, molds can be designed according to specific product requirements.
No, rotational molding is a low-pressure manufacturing process.
Water storage, agriculture, construction, marine, and industrial manufacturing industries.
Yes, multi-station configurations support high-volume production.
Routine inspection of burners, motors, gear systems, and control panels is recommended.
Yes, it is specifically designed to handle long and large molds efficiently.
Yes, metal inserts can be integrated into molded products.
It offers better heat efficiency, lower operating costs, improved product consistency, and enhanced production performance.
Related Products

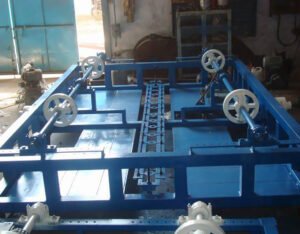

Open Flame Rock N Roll Rotomoulding Machine
