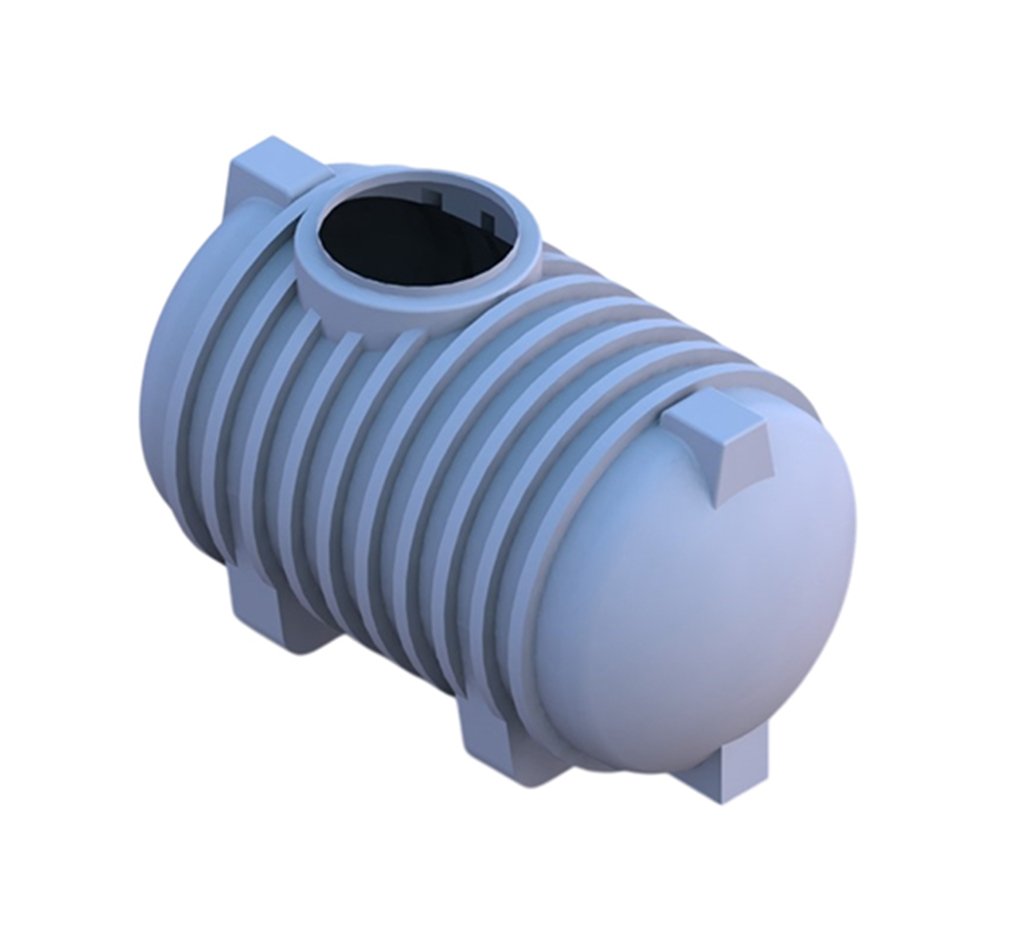

Underground Tank Mould
- Home
- /
- Underground Tank Mould
Underground water storage systems play a crucial role in modern infrastructure by ensuring efficient water management while saving surface space. These tanks are widely used in residential, commercial, agricultural, and industrial sectors for storing potable water, rainwater harvesting, and wastewater management. Compared to traditional concrete tanks, plastic underground tanks offer superior corrosion resistance, leak-proof construction, and longer service life.
The manufacturing of these tanks requires specialized tooling known as Underground Water Tank Rotomoulding Moulds. These moulds are engineered to produce strong, seamless, and high-capacity plastic tanks using the rotational molding process. Since underground tanks must withstand soil pressure, external loads, and varying environmental conditions, the mould design plays a critical role in ensuring durability and performance.
High-quality moulds enable manufacturers to produce tanks with uniform wall thickness, structural reinforcement, and long-term reliability.
Understanding Underground Water Tank Rotomoulding Moulds
An underground water tank rotomoulding mould is a precision-engineered metal mould used to manufacture plastic water storage tanks designed for underground installation. These moulds define the tank’s shape, size, capacity, inlet-outlet provisions, and reinforcement features.
The mould is designed to produce seamless tanks with consistent thickness, ensuring leak-proof performance and resistance to environmental stress. Advanced mould designs include ribbed structures and load-bearing reinforcements that help tanks withstand soil pressure and heavy loads above ground.
These moulds are typically manufactured using mild steel or aluminum, providing strength, durability, and efficient heat transfer during the rotational molding process.
Key Features
Underground tank rotomoulding moulds are designed with advanced features.
- Heavy-duty construction for long service life
- Precision cavity design for accurate dimensions
- Uniform wall thickness formation
- Reinforced ribbed structure for high strength
- Leak-proof tank production
- Strong clamping and locking system
- Resistance to thermal and mechanical stress
- Compatibility with rotomoulding machines
- Customizable tank capacities and designs
- Low maintenance requirements
These features ensure the production of reliable underground tanks.
Technical Specifications
| Specification | Details |
|---|---|
|
Mold Material |
Mild Steel / Aluminum |
|
Manufacturing Method |
Fabrication / CNC Machining |
|
Tank Capacity |
500 Liters – 20,000 Liters |
|
Structure |
Multi-Part Mold |
|
Surface Finish |
Smooth / Textured |
Working Principle
Underground plastic tanks are manufactured using the rotational molding process.
Material Loading
A measured quantity of polyethylene powder is loaded into the mould cavity.
Heating and Rotation
The mould is mounted on a rotating arm and placed in a heating chamber. It rotates along two axes while the material melts.
Material Distribution
The molten plastic spreads uniformly across the inner surface of the mould, forming the tank.
Cooling Phase
The mould is transferred to a cooling station where the plastic solidifies.
This process ensures seamless, joint-free, and leak-proof tank production.
Construction and Design Mechanism
The design of underground tank moulds focuses on structural strength and durability.
Mold Body
Defines the tank’s overall shape, size, and storage capacity.
Reinforcement Structure
Includes ribs and supports to withstand soil pressure and load.
Load-Bearing Design
Engineered to handle external loads such as vehicles or structures above.
Parting Line
Multi-part mould structure allows easy removal of large tanks.
Clamping System
Ensures secure closure during the molding process.
Venting System
Allows air and gases to escape during heating.
Industrial Applications
Residential Sector
Commercial Buildings
Agriculture Sector
Industrial Sector
Advantages of Underground Tank Mould
Underground tank moulds offer several benefits.
Seamless Construction
Produces leak-proof tanks without joints.
High Structural Strength
Designed to withstand soil pressure and external loads.
Corrosion Resistance
Plastic tanks resist moisture and chemicals.
Space Saving
Underground installation saves surface space.
Limitations of Underground Tank Mould
Despite their advantages, these moulds have certain limitations.
Longer Production Cycle
Rotational molding requires more time.
Large Mold Size
Handling requires heavy-duty equipment.
Limited Material Options
Primarily supports polyethylene materials.
Initial Investment
High-quality moulds require significant upfront cost.
Why Choose N Line Roto Pvt. Ltd.
N Line Roto Pvt. Ltd., formerly known as Neelam Roto Plast, was established in 1993 and has extensive experience in manufacturing rotational molding machines and moulds. The company offers a complete range of rotomoulding solutions for plastic product manufacturers.
With advanced manufacturing facilities and a skilled technical team, the company delivers high-quality moulds and machines that meet industry standards. It also provides installation, training, and turnkey project support.
Under the leadership of Mr. Dinesh Panchal, the company has expanded its presence in domestic and international markets, delivering reliable and efficient solutions.
Frequently Asked Questions (FAQs)
It is used to manufacture plastic underground water tanks.
Mild steel and aluminum are commonly used.
Polyethylene materials such as LLDPE are typically used.
Yes, they are designed to withstand soil pressure and external loads.
By adjusting the amount of plastic powder used.
Yes, molds can be designed as per requirements.
The mould is opened after cooling.
They are designed according to machine specifications.
Yes, regular cleaning and inspection are required.
Yes, due to seamless construction.
Residential, commercial, agricultural, and industrial sectors.
They have a long service life with proper maintenance.
Yes, specialized moulds support multi-layer production.
Yes, plastic tanks resist chemicals and moisture.
Some modifications are possible.
Smooth and textured finishes.
Yes, if designed with proper reinforcement.
Yes, moulds support high-capacity tanks.
Yes, it is ideal for large hollow structures.
It produces strong, seamless, and durable tanks.
Conclusion
Underground water tank rotomoulding moulds are essential for manufacturing high-strength, leak-proof, and durable water storage solutions. Through the rotational molding process, these moulds enable the production of seamless tanks with uniform thickness and long service life.
With advanced design and high-quality materials, these moulds help manufacturers produce tanks that meet the demands of modern infrastructure, ensuring efficiency, reliability, and long-term performance.
