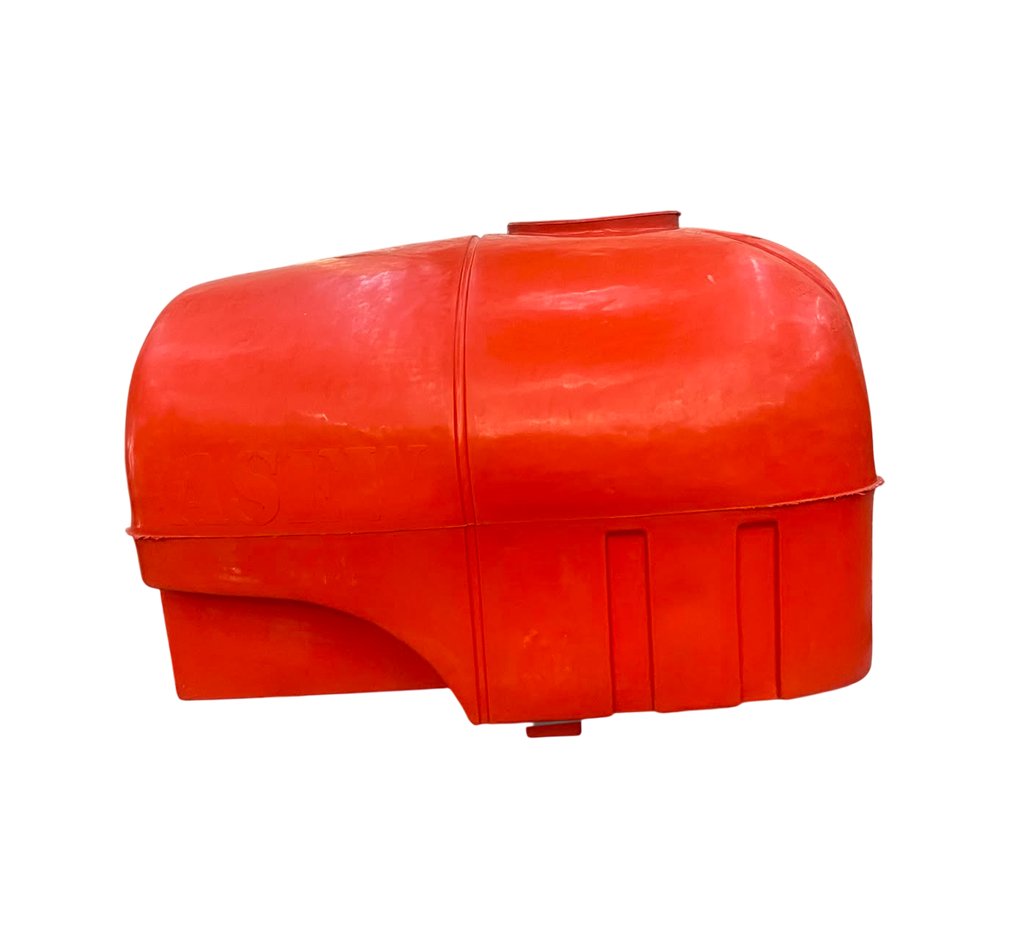

Rotomoulded Spray Tank Mould
- Home
- /
- Rotomoulded Spray Tank Mould
Spray tanks are essential components widely used in agriculture, pest control, landscaping, and industrial spraying applications. These tanks are designed to store and dispense liquids such as fertilizers, pesticides, herbicides, and chemicals with efficiency and safety. With increasing demand for lightweight, corrosion-resistant, and durable solutions, plastic spray tanks have become the preferred choice over traditional metal tanks.
Rotomoulded spray tanks offer superior strength, chemical resistance, and seamless construction, making them ideal for harsh operating environments. The manufacturing of these tanks is carried out using advanced rotational molding technology, which requires precision tooling known as Rotomoulded Spray Tank Moulds.
These moulds are engineered to produce high-quality spray tanks with uniform wall thickness, integrated features, and excellent durability, ensuring reliable performance in demanding applications.
Understanding Rotomoulded Spray Tank Moulds
A rotomoulded spray tank mould is a specially designed metal mould used to manufacture plastic spray tanks through the rotational molding process. These moulds define the tank’s shape, capacity, and functional features such as mounting provisions, inlet/outlet connections, and reinforcement structures.
The mould design ensures the production of seamless tanks with no joints or weak points, which is critical for preventing leakage and ensuring long-term durability. Advanced moulds also include provisions for fittings such as lids, valves, and pump connections.
These moulds are typically manufactured from mild steel or aluminum, offering durability, efficient heat transfer, and long service life. Proper mould design ensures consistent product quality and operational efficiency.
Key Features
Rotomoulded spray tank moulds include several advanced features.
- Precision cavity design for accurate dimensions
- Uniform wall thickness for strength and durability
- Seamless tank formation
- Strong and durable construction
- Integrated mounting and fitting provisions
- Resistance to chemicals and environmental factors
- Customizable tank designs and capacities
- High heat resistance
- Compatibility with rotomoulding machines
- Low maintenance requirements
These features ensure reliable production of high-performance spray tanks.
Technical Specifications
| Specification | Details |
|---|---|
|
Mold Material |
Mild Steel / Aluminum |
|
Manufacturing Method |
Fabrication / CNC Machining |
|
Product Type |
Spray Tank |
|
Structure |
Multi-Part Mold |
|
Surface Finish |
Smooth |
Working Principle
Spray tanks are manufactured using the rotational molding process.
Material Loading
A specific quantity of polyethylene powder is loaded into the mould.
Heating and Rotation
The mould is heated and rotated along two perpendicular axes, allowing the material to melt and spread evenly.
Material Distribution
The molten plastic coats the internal surface of the mould uniformly.
Cooling Phase
The mould is cooled to solidify the tank structure.
This process ensures seamless, leak-proof, and durable spray tanks.
Construction and Design Mechanism
The design of spray tank moulds focuses on strength, functionality, and durability.
Mold Body
Defines the shape and capacity of the spray tank.
Reinforcement Structure
Provides strength to withstand pressure and load.
Mounting Provisions
Allows easy installation on sprayers or vehicles.
Inlet and Outlet Design
Supports fluid flow and connection fittings.
Parting Line
Ensures easy product removal.
Clamping System
Maintains tight sealing during molding.
Industrial Applications
Horticulture and Landscaping
Agriculture
Industrial Sector
Water Treatment Sector
Advantages of Rotomoulded Spray Tank Mould
Spray tank moulds offer several key advantages.
Seamless and Leak-Proof Design
Ensures safe storage of liquids.
Chemical Resistance
Suitable for handling aggressive chemicals.
Lightweight Structure
Easy to transport and install.
High Durability
Resistant to impact and environmental conditions.
Limitations of Rotomoulded Spray Tank Mould
Despite their benefits, certain limitations exist.
Longer Production Cycle
Rotational molding requires more time.
Secondary Assembly
Additional fittings require post-processing.
Limited Material Options
Primarily supports polyethylene materials.
Initial Investment
High-quality moulds require capital investment.
Why Choose N Line Roto Pvt. Ltd.
N Line Roto Pvt. Ltd., formerly known as Neelam Roto Plast, was established in 2006 and is a leading manufacturer of rotational molding machines and moulds. The company provides complete solutions for plastic product manufacturing across various industries.
With advanced manufacturing facilities and a skilled team, the company ensures high-quality mould production with precision and durability. It also offers installation, training, and turnkey project support.
Under the leadership of Mr. Dinesh Panchal, the company has built a strong reputation in domestic and international markets by delivering reliable and efficient rotomoulding solutions.
Frequently Asked Questions (FAQs)
It is used to manufacture plastic spray tanks.
Mild steel and aluminum are commonly used.
Polyethylene such as LLDPE is typically used.
Yes, they are seamless and leak-proof.
By controlling the amount of material used.
Yes, they can be designed as per requirements.
Yes, they are suitable for various chemicals.
They are designed according to machine specifications.
Yes, regular maintenance is recommended.
Agriculture, pest control, and industrial sectors.
They have a long service life.
Yes, moulds support multiple capacities.
Yes, they are impact and weather resistant.
Some modifications are possible.
Smooth finish for easy cleaning.
Yes, designs include mounting features.
Yes, provisions for fittings are included.
Yes, they are easy to handle.
Yes, it is ideal for liquid storage products.
It produces seamless and durable products.
Conclusion
Rotomoulded spray tank moulds play a critical role in manufacturing high-quality, durable, and leak-proof spray tanks used across agriculture and industrial sectors. Through the rotational molding process, these moulds ensure seamless construction, uniform thickness, and excellent chemical resistance.
With advanced design and robust materials, these moulds support efficient production and long-lasting product performance. They are essential for meeting modern requirements for safety, durability, and operational efficiency in liquid handling applications.
