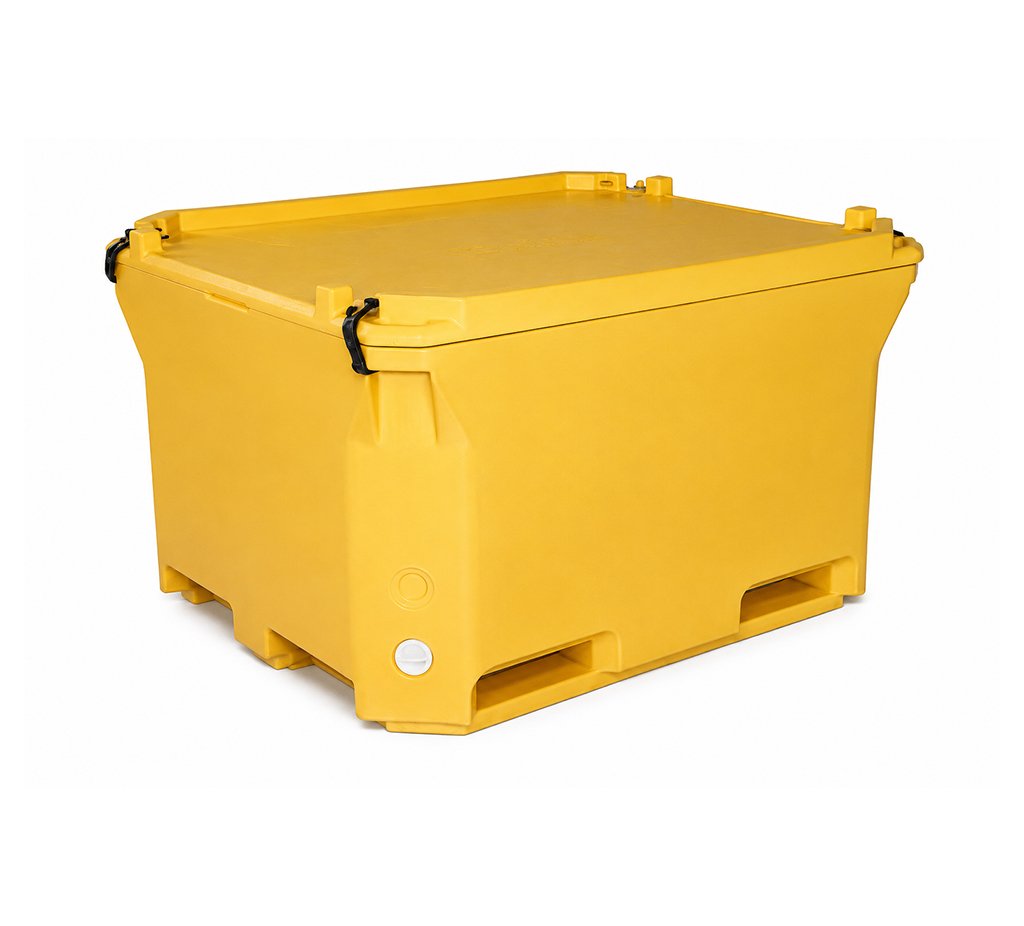

Insulated boxes are widely used for maintaining temperature-sensitive products during storage and transportation. These boxes are essential for industries such as food processing, pharmaceuticals, fisheries, cold chain logistics, and medical supply management, where temperature control is critical.
Traditionally, insulated containers were made using metal or conventional plastic fabrication methods, which often resulted in limited insulation efficiency and structural weaknesses. With advancements in rotational molding technology, rotomoulded insulated boxes have become the preferred solution due to their seamless construction, high durability, and superior thermal insulation performance.
These insulated boxes are manufactured using specialized tooling known as Rotomoulded Insulated Box Moulds, which are designed to produce high-quality, double-walled, and thermally efficient containers suitable for demanding applications.
Understanding Rotomoulded Insulated Box Moulds
A rotomoulded insulated box mould is a precision-engineered metal mould used to manufacture insulated plastic boxes through the rotational molding process. These moulds are designed to create double-wall structures, where an insulating material such as polyurethane foam (PUF) is injected between the inner and outer layers.
The mould defines the shape, size, wall thickness, insulation gap, lid design, and structural reinforcements of the box. Advanced mould designs include provisions for handles, hinges, locks, drainage systems, and gasket sealing to ensure temperature retention and durability.
These moulds are typically manufactured using mild steel or aluminum, offering excellent strength, heat transfer efficiency, and long operational life. Proper engineering ensures consistent product quality and efficient manufacturing.
Key Features
Rotomoulded insulated box moulds offer several advanced features.
- Double-wall construction capability
- High thermal insulation performance
- Seamless and joint-free structure
- Uniform wall thickness
- High impact resistance
- Provision for insulation filling
- Customizable sizes and designs
- UV and weather resistance compatibility
- Long mould life
- Low maintenance requirements
These features enable efficient insulated box manufacturing.
Technical Specifications
| Specification | Details |
|---|---|
|
Mold Material |
Mild Steel / Aluminum |
|
Manufacturing Method |
Fabrication / CNC Machining |
|
Product Type |
Insulated Box |
|
Structure |
Multi-Part Mold |
|
Surface Finish |
Smooth / Textured |
Working Principle
Insulated boxes are manufactured using a combination of rotational molding and insulation processes.
Material Loading
Polyethylene powder is loaded into the mould.
Heating and Rotation
The mould is heated and rotated on two axes.
Layer Formation
Molten plastic forms a uniform outer and inner wall.
Cooling Phase
The mould is cooled to solidify the structure.
This process ensures strong, seamless, and thermally efficient boxes.
Construction and Design Mechanism
The design of insulated box moulds focuses on thermal performance, strength, and usability.
Mold Body
Defines the external and internal dimensions.
Double Wall Design
Creates space for insulation material.
Lid and Seal Design
Ensures airtight and temperature-controlled storage.
Reinforced Structure
Enhances durability and load capacity.
Handle Provision
Facilitates easy transportation.
Parting Line
Ensures smooth demolding.
Industrial Applications
Food Processing
Fisheries Sector
Pharmaceutical
Healthcare Sector
Advantages of Rotomoulded Insulatedbox Mould
Insulated box moulds provide several key advantages.
Excellent Thermal Insulation
Maintains temperature for extended periods.
Seamless Construction
Prevents leakage and improves strength.
Lightweight Design
Easy to handle and transport.
High Durability
Resistant to impact and environmental conditions.
Limitations of Rotomoulded Insulatedbox Mould
Despite advantages, certain limitations exist.
Multi-Step Production
Requires additional insulation process.
Longer Production Time
Rotational molding is slower compared to injection molding.
Limited Material Options
Primarily supports polyethylene materials.
Initial Investment
High-quality moulds require capital investment.
Why Choose N Line Roto Pvt. Ltd.
N Line Roto Pvt. Ltd., formerly known as Neelam Roto Plast, was established in 1993 and is a leading manufacturer of rotational molding machines and moulds based in Ahmedabad, Gujarat, India.
The company provides complete rotomoulding solutions, including machine manufacturing, mould design, installation, and operator training. With advanced infrastructure and an experienced engineering team, it ensures high-quality mould production with precision and durability.
Under the leadership of Mr. Dinesh Panchal, the company has built a strong reputation in domestic and international markets by delivering reliable, efficient, and customized rotomoulding solutions for various industrial applications.
Frequently Asked Questions (FAQs)
It is used to manufacture insulated plastic containers.
Mild steel and aluminum are commonly used.
Polyethylene such as LLDPE is typically used.
Polyurethane foam (PUF) is commonly used.
Yes, they are designed to be leak-proof.
By controlling the material quantity.
Yes, they can be designed as per requirements.
They are designed according to machine specifications.
Yes, regular maintenance is required.
Food, pharma, fisheries, and logistics sectors.
They have a long operational life.
Yes, depending on machine capacity.
Yes, UV stabilizers can be added.
Some modifications are possible.
Smooth and textured finishes.
Yes, handle provisions are available.
Yes, provisions are available.
Yes, it ensures seamless and strong structures.
Yes, they are widely used in cold chain systems.
It produces seamless and durable products.
Conclusion
Rotomoulded insulated box moulds are essential for manufacturing high-performance temperature-controlled storage solutions. Through rotational molding technology, these moulds enable seamless construction, uniform wall thickness, and excellent thermal insulation capability.
With advanced design features and high-quality materials, these moulds support the production of durable and efficient insulated boxes that meet the growing demand across food, pharmaceutical, and logistics industries.
