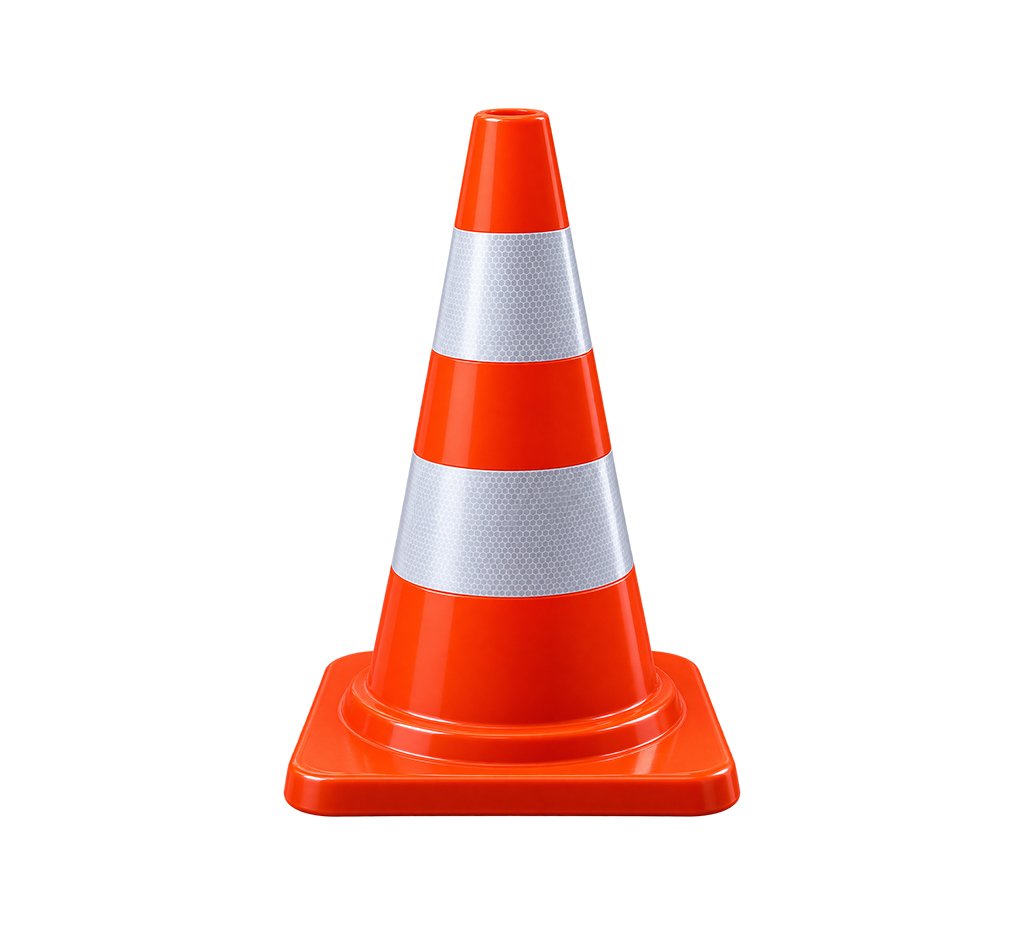

Traffic cones are essential safety products used for road management, construction zones, parking areas, and emergency situations. These cones help guide traffic, mark hazardous areas, and improve visibility in both day and night conditions. Plastic traffic cones are widely preferred due to their lightweight structure, durability, and resistance to environmental factors. The manufacturing of these cones requires specialized tools known as Plastic Traffic Cone Moulds.
These moulds are designed to produce hollow or solid cones using the rotational molding process. The mould determines the shape, height, base structure, and wall thickness of the traffic cone. Since cones are frequently exposed to outdoor conditions and physical impact, the mould must be engineered to produce products that are stable, flexible, and long-lasting.
Well-designed moulds enable manufacturers to produce traffic cones with consistent quality, high visibility, and reliable performance in various safety applications.
Understanding Plastic Traffic Cone Moulds
A plastic traffic cone mould is a precision-engineered metal cavity used to manufacture traffic cones through the rotational molding process. During production, plastic powder is heated inside the mould while it rotates, allowing the molten material to coat the internal surfaces evenly.
The mould design includes features such as a wide base for stability, a tapered cone structure, and provisions for reflective sleeves or markings. These features are critical for ensuring that the final product meets safety and visibility requirements.
Traffic cone moulds are typically manufactured using mild steel or aluminum, materials chosen for their strength and effective heat transfer. Proper mould design ensures that the cones have uniform wall thickness, good impact resistance, and the flexibility needed to withstand accidental impacts without breaking.
Key Features
Plastic traffic cone moulds are designed with features that enhance production performance.
- Durable metal construction for long service life
- Accurate cavity design for precise cone dimensions
- Uniform heat distribution during molding
- Strong clamping mechanisms
- Resistance to repeated thermal cycles
- Compatibility with rotomoulding machines
- Wide base design for improved stability
- Smooth or textured surface finish options
- Customizable mold sizes and designs
- Low maintenance requirements
These features enable the production of high-quality traffic cones.
Technical Specifications
| Specification | Details |
|---|---|
|
Mold Material |
Mild Steel / Aluminum |
|
Manufacturing Method |
Fabrication / CNC Machining |
|
Cone Height |
300 mm – 1000 mm |
|
Base Type |
Standard / Heavy Base |
|
Surface Finish |
Smooth / Textured |
Working Principle
Plastic traffic cones are manufactured using the rotational molding process.
Material Loading
A measured quantity of polyethylene powder is placed inside the mould cavity.
Heating and Rotation
The mould is mounted on a rotating arm and placed inside a heating chamber. It rotates along two axes while the plastic melts.
Material Distribution
The molten plastic spreads evenly along the inner surface of the mould, forming the cone structure.
Cooling Phase
The mould is transferred to a cooling station where the plastic solidifies while rotation continues.
This process ensures a seamless structure and consistent wall thickness.
Construction and Design Mechanism
The design of traffic cone moulds focuses on stability, durability, and efficient production.
Mold Body
The mold body defines the shape and dimensions of the traffic cone.
Base Design
The mould includes a wide base structure to ensure stability of the cone.
Parting Line
The mould is divided into sections for easy removal of the product.
Clamping System
Strong clamps hold the mould sections together during the molding process.
Venting System
Vents allow trapped air and gases to escape during heating.
Mounting Arrangement
Mounting brackets connect the mould to the rotational molding machine.
Industrial Applications
Road Construction
Traffic Management
Parking Management
Event Management
Industrial Facilities
Advantages of Plastic Traffic Cone Mould
Plastic traffic cone moulds offer several benefits in manufacturing.
Seamless Product Structure
Rotational molding produces cones without joints or weak points.
Uniform Wall Thickness
Even material distribution ensures consistent strength.
Impact Resistance
Cones are designed to withstand minor collisions without damage.
Lightweight Design
Plastic cones are easy to transport and handle.
Limitations of Plastic Traffic Cone Mould
Despite their advantages, traffic cone moulds have certain limitations.
Longer Production Time
Rotational molding requires longer cycle times.
Mold Weight
Large moulds may require mechanical handling.
Limited Material Options
The process mainly supports polyethylene materials.
Design Complexity Constraints
Highly intricate designs may be difficult to achieve.
Why Choose N Line Roto Pvt. Ltd.
N Line Roto Pvt. Ltd., formerly known as Neelam Roto Plast, was established in 2006 and has strong expertise in manufacturing rotational molding machines and moulds. The company offers a wide range of rotomoulding equipment and solutions for plastic product manufacturing industries.
The organization operates modern manufacturing facilities supported by experienced engineers and technicians. It provides complete support including machine supply, mold manufacturing, installation services, and turnkey project solutions.
Under the leadership of Mr. Dinesh Panchal, the company has expanded its presence across domestic and international markets, supplying equipment to various industries worldwide.
Frequently Asked Questions (FAQs)
It is used to manufacture traffic cones through the rotational molding process.
Mild steel and aluminum are commonly used.
Polyethylene materials such as LLDPE and HDPE are typically used.
Cones ranging from 300 mm to 1000 mm in height can be manufactured.
Yes, they are designed to withstand outdoor conditions and minor impacts.
By adjusting the quantity of plastic powder used.
Yes, molds can be designed according to specific requirements.
The mould is opened after cooling and the cone is removed.
They are designed according to machine configuration.
Regular cleaning and inspection are recommended.
Yes, pigments can be added during manufacturing.
Yes, plastic cones resist moisture and chemicals.
Construction, traffic management, and industrial sectors.
With proper maintenance, moulds can last for many production cycles.
Yes, moulds can support reflective sleeve designs.
Smooth or textured finishes.
Yes, they are designed for repeated use.
Some modifications may be possible depending on design.
Yes, they are designed for outdoor applications.
Yes, it is widely used for producing durable safety cones.
Conclusion
Plastic traffic cone moulds play a key role in the production of reliable road safety equipment. Through the rotational molding process, these moulds enable manufacturers to produce seamless, durable, and high-visibility cones suitable for various applications.
With proper mould design and quality materials, manufacturers can produce traffic cones that meet safety standards and perform effectively in different environments. These moulds provide long-term reliability and support efficient production in modern plastic manufacturing operations.
