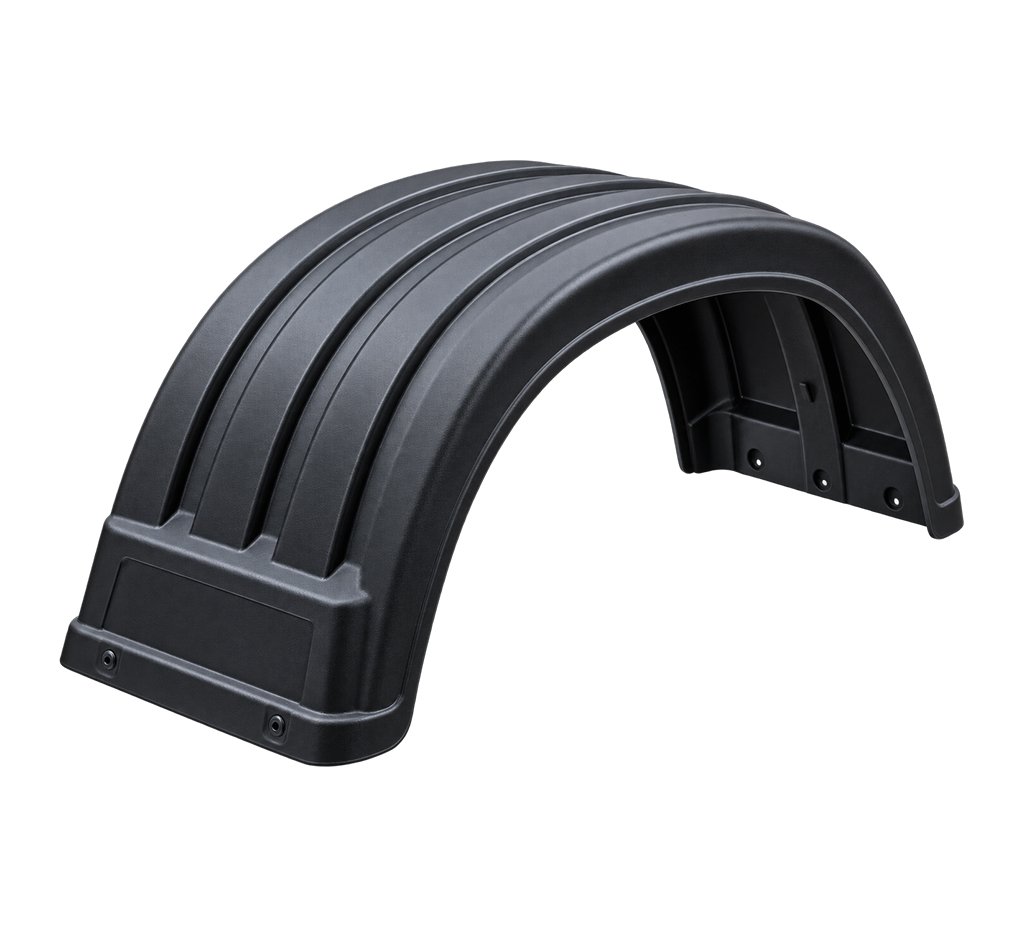

Mudguard Mould
- Home
- /
- Mudguard Mould
Mudguards are essential protective components used in vehicles and machinery to prevent mud, water, stones, and debris from being thrown onto the vehicle body or surrounding areas. They are widely used in tractors, commercial vehicles, two-wheelers, construction equipment, and agricultural machinery. Mudguards play a vital role in enhancing safety, maintaining cleanliness, and protecting mechanical components from damage.
With the advancement of plastic manufacturing technologies, plastic mudguards have become increasingly popular due to their lightweight structure, corrosion resistance, and flexibility. These mudguards are manufactured using specialized tooling known as Mudguard Moulds, primarily through the rotational molding process.
A well-designed mould ensures that the mudguard has proper curvature, uniform thickness, and high durability to withstand harsh environmental and operational conditions.
Understanding Mudguard Moulds
A mudguard mould is a precision-engineered metal mould used to manufacture plastic mudguards using the rotational molding process. The mould defines the exact shape, size, curvature, and structural features of the mudguard.
These moulds are designed to produce hollow or semi-hollow components with consistent wall thickness and excellent surface finish. The design may include features such as mounting points, reinforcement ribs, and contour shapes that match specific vehicle models.
Mudguard moulds are typically manufactured using mild steel or aluminum, providing strength and efficient heat transfer during production. Proper mould design ensures durability, dimensional accuracy, and ease of installation.
Key Features
Mudguard moulds are designed with advanced features for efficient production.
- Strong metal construction for long service life
- Accurate cavity design for precise dimensions
- Uniform heat distribution
- Reinforced structure for durability
- Smooth and high-quality surface finish
- Strong clamping system
- Resistance to thermal stress
- Compatibility with rotomoulding machines
- Customizable designs for different vehicles
- Low maintenance requirements
These features support the production of reliable mudguards.
Technical Specifications
| Specification | Details |
|---|---|
|
Mold Material |
Mild Steel / Aluminum |
|
Manufacturing Method |
Fabrication / CNC Machining |
|
Product Type |
Mudguard |
|
Structure |
Multi-Part Mold |
|
Surface Finish |
Smooth / Textured |
Working Principle
Plastic mudguards are manufactured using the rotational molding process.
Material Loading
A measured quantity of polyethylene powder is placed inside the mould.
Heating and Rotation
The mould is mounted on a rotating arm and placed inside a heating chamber. It rotates along two axes while the plastic melts.
Material Distribution
The molten plastic spreads uniformly along the inner surface of the mould, forming the mudguard shape.
Cooling Phase
The mould is moved to a cooling station where the plastic solidifies.
This process ensures a seamless and durable structure.
Construction and Design Mechanism
The design of mudguard moulds focuses on strength, flexibility, and precision.
Mold Body
Defines the overall shape and curvature of the mudguard.
Reinforcement Structure
Includes ribs and supports to enhance strength and stability.
Parting Line
Multi-part mould design allows easy removal of the finished product.
Clamping System
Ensures secure closure during the molding process.
Venting System
Allows air and gases to escape during heating.
Mounting Arrangement
Connects the mould to the rotomoulding machine.
Industrial Applications
Industrial Machinery
Agriculture
Automotive
Construction
Advantages of Mudguard Mould
Mudguard moulds offer several advantages in manufacturing.
Lightweight Components
Plastic mudguards reduce overall vehicle weight.
Corrosion Resistance
Plastic materials do not rust, increasing durability.
Seamless Construction
Rotational molding produces joint-free structures.
High Impact Resistance
Mudguards can withstand environmental and mechanical stress.
Limitations of Mudguard Mould
Despite their advantages, these moulds have certain limitations.
Longer Production Cycle
Rotational molding requires more time compared to other processes.
Mold Size and Weight
Large moulds may require handling equipment.
Limited Material Options
Primarily supports polyethylene materials.
Initial Investment
High-quality moulds require significant upfront cost.
Why Choose N Line Roto Pvt. Ltd.
N Line Roto Pvt. Ltd., formerly known as Neelam Roto Plast, was established in 2006 and has extensive experience in manufacturing rotational molding machines and moulds. The company offers a complete range of rotomoulding solutions for plastic product manufacturers.
With advanced manufacturing infrastructure and a skilled technical team, the company delivers high-quality moulds and machines that meet industry standards. It also provides installation, training, and turnkey project support.
Under the leadership of Mr. Dinesh Panchal, the company has expanded its presence in domestic and international markets, providing reliable and efficient solutions.
Frequently Asked Questions (FAQs)
It is used to manufacture plastic mudguards through rotational molding.
Mild steel and aluminum are commonly used.
Polyethylene materials such as LLDPE are typically used.
Yes, they are designed to withstand harsh conditions.
By adjusting the amount of plastic powder used.
Yes, molds can be designed for specific vehicle models.
The mould is opened after cooling and the product is removed.
They are designed according to machine specifications.
Regular cleaning and inspection are recommended.
Yes, pigments can be added.
Yes, plastic materials resist rust and chemicals.
Agriculture, automotive, and construction sectors.
With proper maintenance, they last for many cycles.
Yes, specialized moulds support multi-layer designs.
Yes, they are designed to handle mechanical stress.
Some modifications may be possible.
Smooth and textured finishes.
Yes, they are designed for long-term use.
Yes, it is ideal for producing durable components.
It produces strong, seamless, and lightweight products.
Conclusion
Mudguard moulds play an important role in manufacturing durable and efficient protective components for vehicles and machinery. Through the rotational molding process, these moulds enable the production of seamless, corrosion-resistant, and high-performance mudguards.
With proper design and high-quality materials, manufacturers can produce mudguards that meet industry standards and perform reliably in demanding conditions. These moulds contribute significantly to modern plastic manufacturing and vehicle component production.
