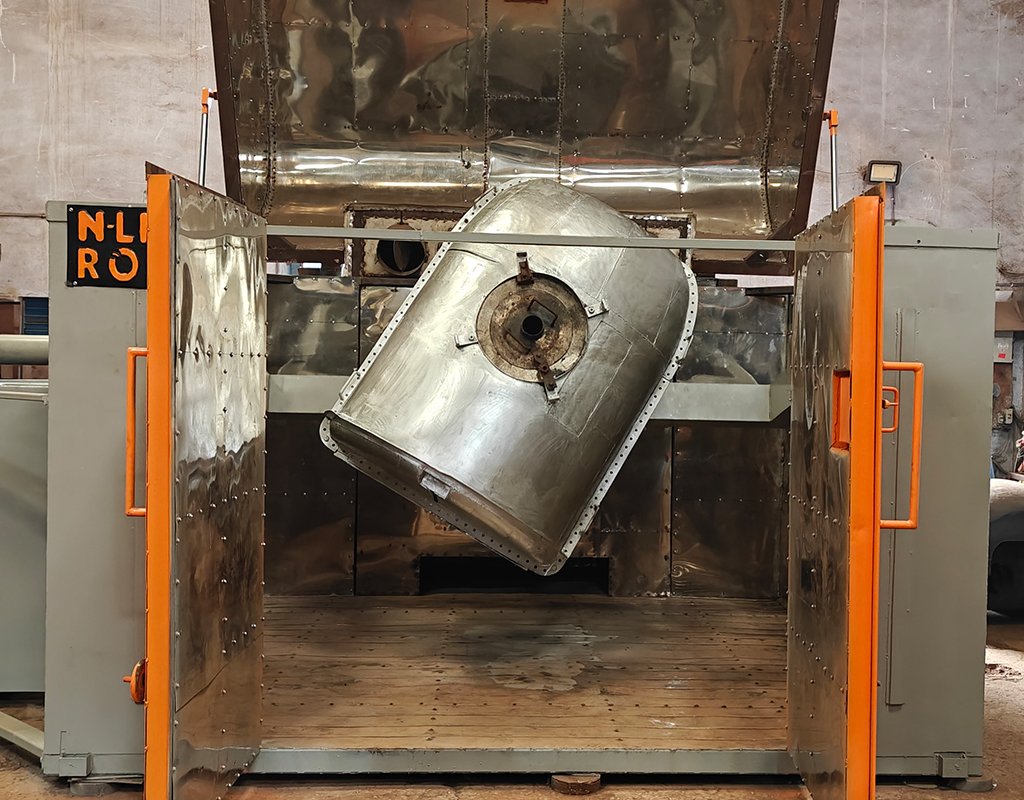

Clamshell Rotomoulding Machine
A Clamshell Rotomoulding Machine is a highly efficient rotational molding system designed for manufacturing hollow plastic products of various shapes and sizes. The machine gets its name from its unique oven design, where the heating chamber opens and closes like a clamshell, allowing easy access to the mold during loading, heating, cooling, and unloading operations.
Technical Specifications
| Model | Floor Space (Mtrs) | U Arm Swing (MM)* | |||
|---|---|---|---|---|---|
|
|
L |
W |
H |
Major* |
Minor |
|
NRP-U-1000 |
5 |
4 |
5 |
1400 |
1200 |
|
NRP-U-2000 |
6 |
5 |
7 |
1800 |
1500 |
|
NRP-U-3000 |
6 |
6 |
7 |
2000 |
1700 |
|
NRP-U-5000 |
8 |
7 |
7 |
2500 |
2200 |
|
NRP-U-10000 |
10 |
8 |
9 |
3200 |
2500 |
|
NRP-U-15000 |
12 |
10 |
10 |
3600 |
2800 |
|
NRP-U-20000 |
12 |
12 |
12 |
4500 |
3200 |
This machine is widely used in the rotational molding industry because of its simple structure, energy efficiency, and flexibility in handling different mold sizes. It is particularly suitable for producing water tanks, road barriers, playground equipment, dustbins, industrial containers, furniture components, and custom-molded plastic products.
The clamshell design provides faster heat transfer, improved production control, and reduced floor space requirements compared to larger carousel systems. Modern Clamshell Rotomoulding Machines incorporate advanced PLC controls, efficient burner systems, and automated operational features to ensure consistent product quality and high productivity.
Overview of Clamshell Rotational Molding Technology
Clamshell rotational molding technology utilizes a single-station molding system where the oven opens and closes around the rotating mold assembly.
Unlike multi-arm carousel machines, the mold remains mounted on a rotating arm while the oven enclosure moves around it during the heating cycle. This arrangement simplifies machine operation and reduces mechanical complexity.
The rotating mold moves simultaneously on two axes, ensuring that the thermoplastic material melts and coats the entire inner surface evenly. The controlled heating and cooling cycles produce seamless hollow plastic products with excellent wall thickness uniformity and structural integrity.
Because of its compact design and lower investment cost, the Clamshell Rotomoulding Machine is a preferred choice for small and medium-scale production facilities.
Key Features
Clamshell Rotomoulding Machines offer numerous operational advantages.
- Compact machine design
- Clamshell-style opening oven
- Uniform heat distribution
- Energy-efficient heating system
- PLC-based operation
- Adjustable rotational speeds
- Easy mold loading and unloading
- Easy mold loading and unloading
- Heavy-duty structural frame
- User-friendly controls
- Low maintenance requirements
- Suitable for multiple mold sizes
These features contribute to reliable production and consistent product quality.
NRP Machine Capacity
| Ltr Capacity | Machine Models | ||||||
|---|---|---|---|---|---|---|---|
|
|
NRP-U-1000 |
NRP-U-2000 |
NRP-U-3000 |
NRP-U-5000 |
NRP-U-10000 |
NRP-U-15000 |
NRP-U-20000 |
|
1000 |
1 |
1 |
1 |
2 |
4 |
4 |
4 |
|
1500 |
– |
1 |
1 |
1 |
2 |
2 |
2 |
|
2000 |
– |
1 |
1 |
1 |
2 |
2 |
2 |
|
3000 |
– |
– |
1 |
1 |
1 |
1 |
1 |
|
5000 |
– |
– |
– |
1 |
1 |
1 |
1 |
|
7500 |
– |
– |
– |
– |
1 |
1 |
1 |
|
10000 |
– |
– |
– |
– |
1 |
1 |
1 |
|
15000 |
– |
– |
– |
– |
– |
1 |
1 |
|
20000 |
– |
– |
– |
– |
– |
– |
1 |
Working Principle
The machine operates through a sequence of material loading, heating, cooling, and product removal.
Material Loading
A measured quantity of plastic powder is loaded into the mold. The amount of material determines the final wall thickness of the product.
Heating Cycle
After loading, the mold is secured on the rotating arm. The clamshell oven closes around the mold and begins the heating cycle.
Cooling Process
Once the heating cycle is complete, the oven opens automatically and moves away from the mold.
Product Removal
After complete cooling and solidification, the mold is opened and the finished product is removed.
Machine Structure and Components
The Clamshell Rotomoulding Machine consists of several essential components.
Clamshell Oven
The hinged oven enclosure opens and closes around the mold, providing efficient heating while reducing heat loss.
Rotating Arm Assembly
The rotating arm supports the mold and provides biaxial rotation during heating and cooling.
Burner System
The heating system generates uniform temperature inside the oven chamber for effective plastic melting.
Cooling Station
The cooling area solidifies the product while maintaining dimensional stability.
Mold Mounting Frame
The frame securely holds molds of different sizes and shapes.
Drive System
Motors and gearboxes control rotational speeds on both axes.
Industrial Applications
Water Storage
Agriculture
Construction
Industrial
Marine
Advantages of Clamshell Rotomoulding Machine
Compact Design
Requires less factory floor space compared to carousel machines.
Energy Efficient
The enclosed oven design reduces heat loss and lowers fuel consumption.
Easy Operation
Simple machine configuration enables easier operation and maintenance.
Flexible Production
Suitable for a wide variety of products and mold sizes.
Consistent Product Quality
Uniform heating and rotation provide excellent wall thickness distribution.
Lower Initial Investment
More economical than large multi-arm rotational molding systems.
Limitations of Clamshell Rotomoulding Machine
Despite its advantages, Clamshell Rotomoulding Machines have certain limitations.
Lower Production Volume
Single-station operation may limit production capacity compared to carousel systems.
Sequential Processing
Heating and cooling cycles occur one after another, affecting throughput.
Mold Size Restrictions
Very large molds may require specialized machine configurations.
Operator Dependency
Manual and semi-automatic models require experienced operators.
Why Choose N Line Roto Pvt. Ltd.
N Line Roto Pvt. Ltd., formerly known as Neelam Roto Plast, has been manufacturing advanced rotational molding machinery since 1993.
The company specializes in rotomoulding machines, pulveriser machines, extrusion equipment, molds, and turnkey rotational molding solutions.
Key Strengths
- Modern manufacturing facility
- Experienced engineering professionals
- Customized machine development
- Energy-efficient machine designs
- Complete turnkey project solutions
- Technical consultation and support
- Global export network
- Reliable after-sales service
Under the leadership of Mr. Dinesh Panchal, N Line Roto Pvt. Ltd. continues to provide innovative and dependable machinery solutions for the plastics processing industry.
Frequently Asked Questions (FAQs)
A Clamshell Rotomoulding Machine is a single-station rotational molding system with an oven that opens and closes around the rotating mold.
The oven enclosure opens and closes like a clamshell shell, giving the machine its name.
Water tanks, dustbins, road barriers, playground equipment, industrial containers, and storage tanks.
LLDPE, MDPE, and HDPE powders are commonly processed.
Yes, the enclosed oven design minimizes heat loss and improves fuel efficiency.
Gas-fired, diesel-fired, and electric heating systems can be used.
Yes, biaxial rotation ensures even material distribution throughout the mold.
Yes, manual, semi-automatic, and fully automatic models are available.
Yes, the machine can accommodate various mold sizes and product designs.
Yes, it is ideal for small and medium-scale manufacturing operations.
Air cooling and water-assisted cooling systems are commonly used.
Yes, rotational molding produces seamless one-piece products.
The quantity of plastic powder loaded into the mold determines wall thickness.
No, rotational molding is a low-pressure manufacturing process.
Water storage, infrastructure, agriculture, industrial manufacturing, and playground equipment industries.
No, the machine has a relatively simple structure and low maintenance requirements.
Yes, machines can be customized according to production requirements.
Its compact design, energy efficiency, and operational simplicity.
Yes, depending on machine size and mold capacity.
Yes, with proper cycle management, it can support efficient daily production operations.
Related Products
Lab Rotomoulding Machine

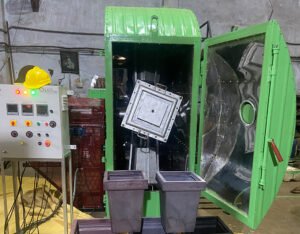

A Lab Rotomoulding Machine is a compact and precision-engineered rotational molding system specifically designed for research, product development, material testing, educational institutions, and small-scale production.
